Modular Tooling System
Modular Tooling System
The EROWA MTS (Modular Tooling System) is the universal clamping solution for workpieces of any size and any machining type - from manually set up single parts to fully automated series production.

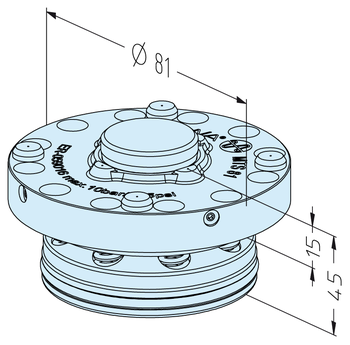

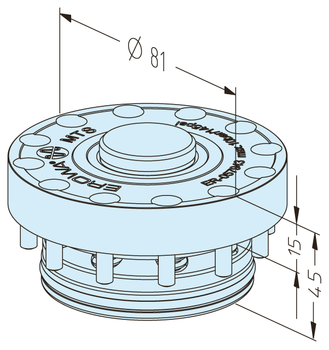

Its modular design, construction and standardization allow it to be used on milling, grinding, turning, eroding and measuring stations, guaranteeing repeatability of < 0.003 mm. With system variants from MTS 81 to MTS 4.0, the range covers clamping powers of up to 80,000 N.
Thanks to pneumatic systems, a robust design and optional process sensors, EROWA MTS forms the solid basis for precise and networked production in accordance with Industry 4.0 standards.
Simplest control

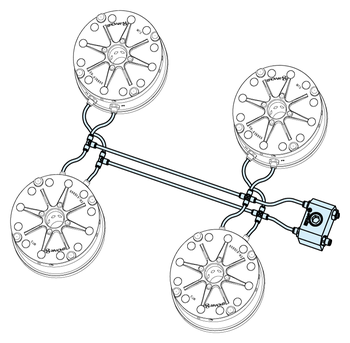

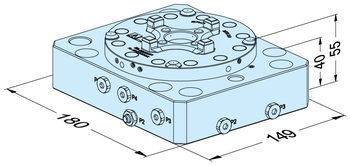

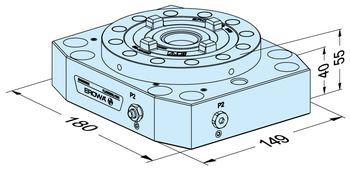

Only two pneumatic lines are required to control the MTS 4.0 base plate: opening and reclamping (optional: cleaning air for automation).
Power is supplied autonomously via the integrated battery.
Wireless digital status monitoring

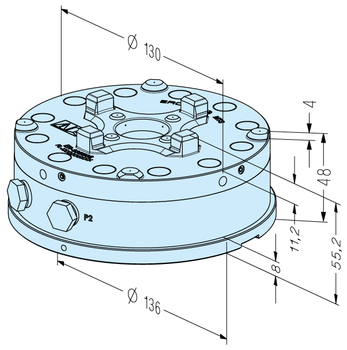

The data signals from the MTS 4.0 chucks are transmitted wirelessly to a receiver integrated into the machine.
Electronic monitoring opens up a whole new range of evaluation options: proactive maintenance, precise process analysis, and advanced monitoring capabilities.
For maximum process reliability

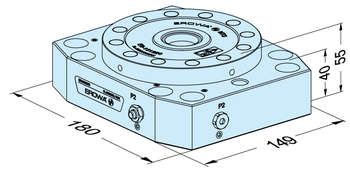

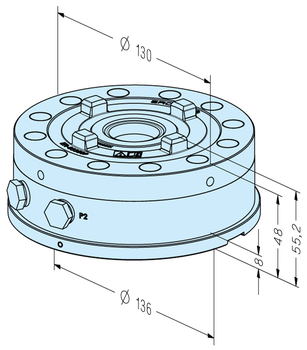

Integrated into the machine control system, MTS 4.0 provides comprehensive information and status displays on the condition of the MTS 4.0 chuck in real time.
MTS 4.0 meets the increased safety standard according to ISO 13849 PLd- Cat 3.
Safety first
UPC 2.0 chucks feature a mounting hole pattern that allows them to be mounted on almost any machine table without additional adaptation.
Everything under control

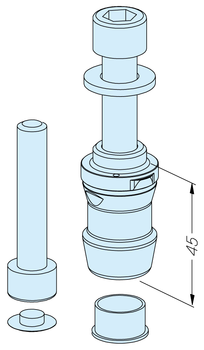

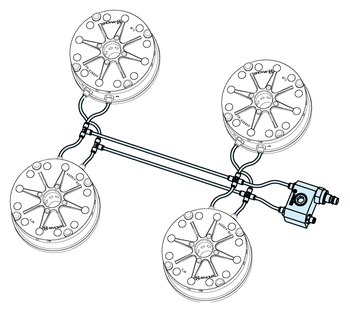

Before machining begins, the presence of the clamping pins and the chuck locking are checked via the integrated air circuit.
If the combined check is successful, machining is approved. This means that all chucks are correctly clamped and all clamping pins are present.
Patented technology
The technical implementation of MTS 3.0 is unique, patented, and certified. The clamping system meets the increased safety standard requirements of ISO standard 13849 PLd Cat 3.
Automation
The MTS system is ideally suited for automatic pallet changing. When changing workpieces, the contact surfaces of the chucks and the clamping pins are cleaned automatically. The MTS pallets are positioned cleanly and precisely.
Modular and continuous clamping

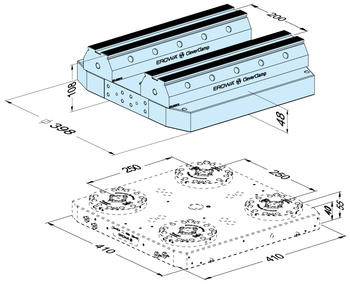

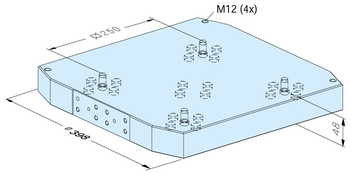

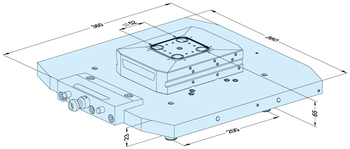

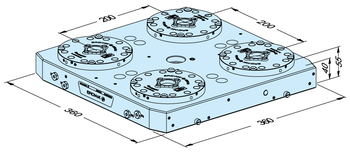

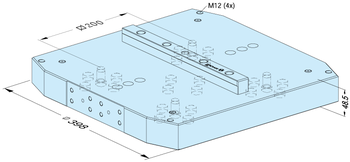

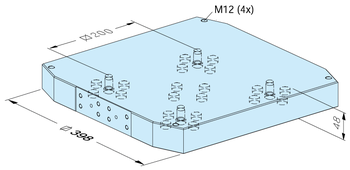

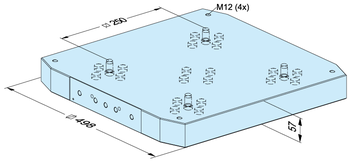

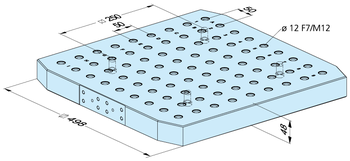

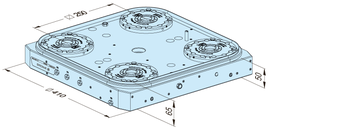

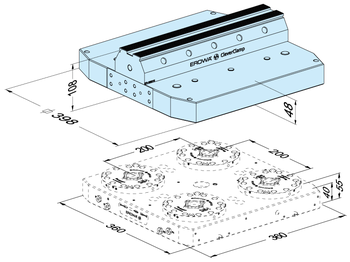

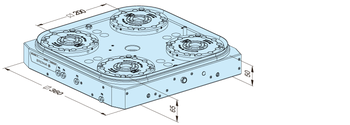

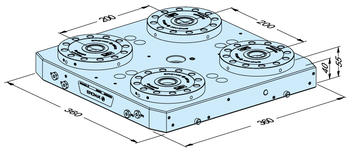

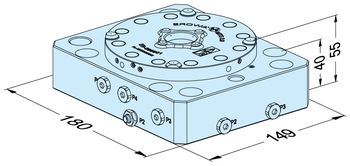

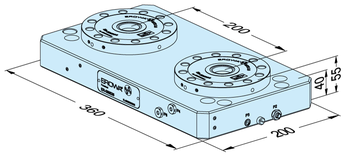

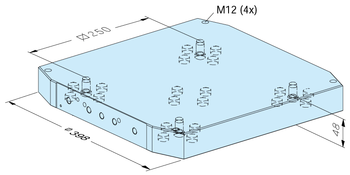

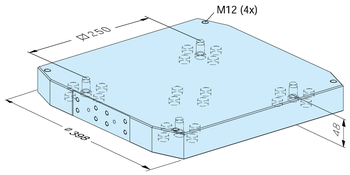

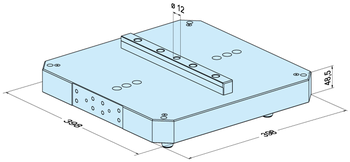

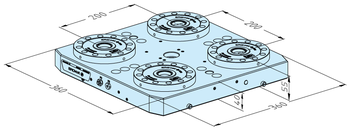

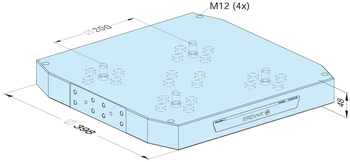

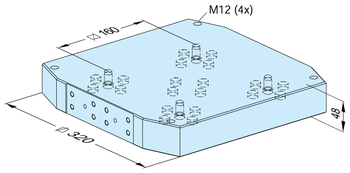

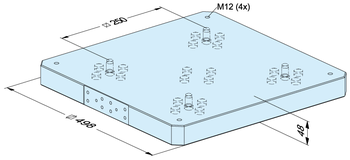

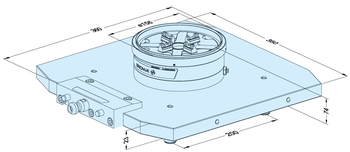

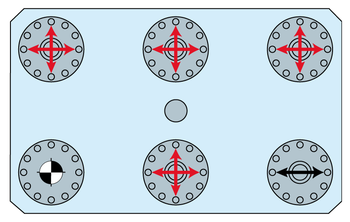

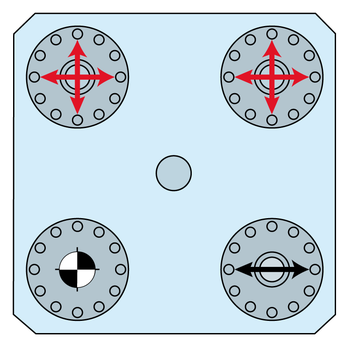

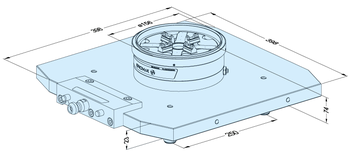

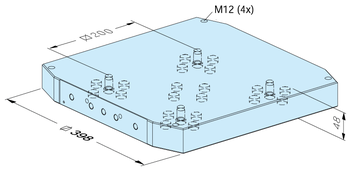

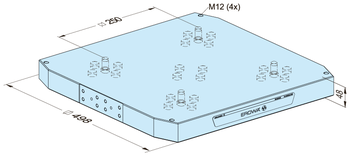

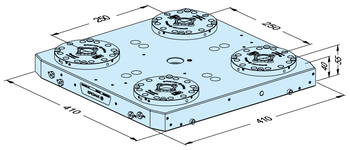

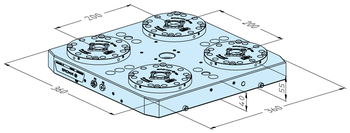

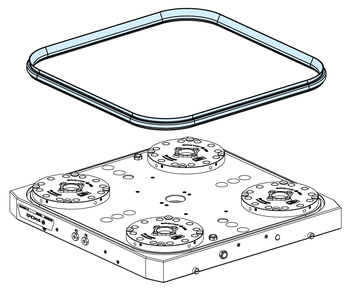

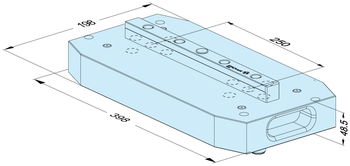

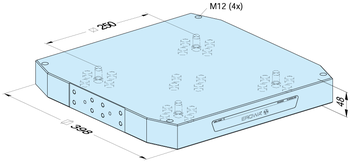

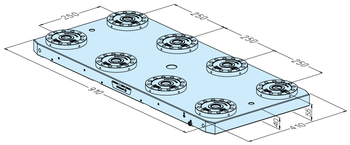

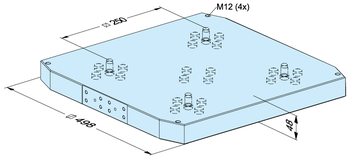

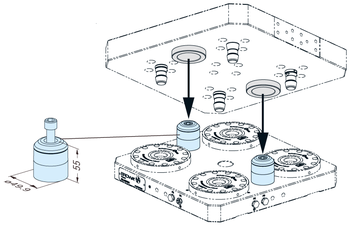

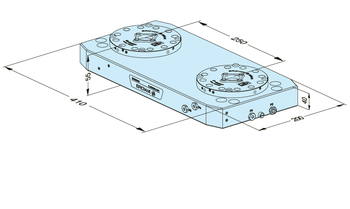

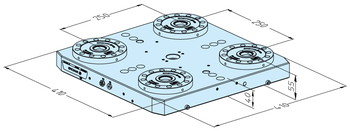

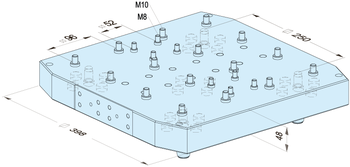

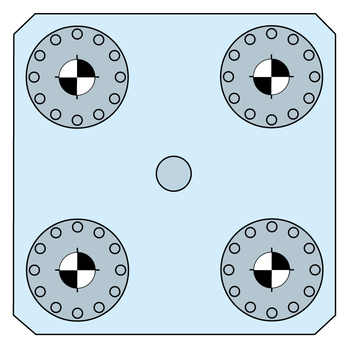

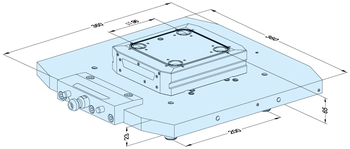

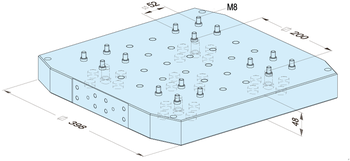

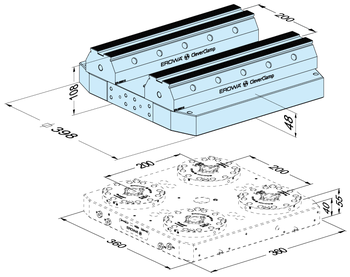

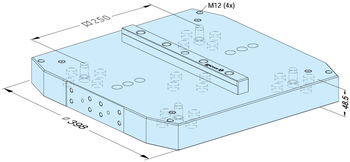

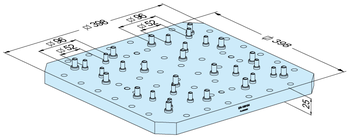

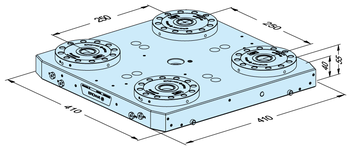

MTS base plates are the flexible and precise interface for single or multiple palletizing.

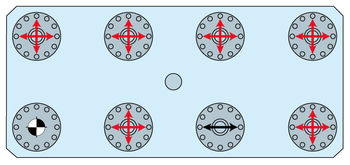

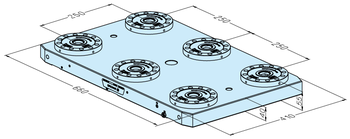

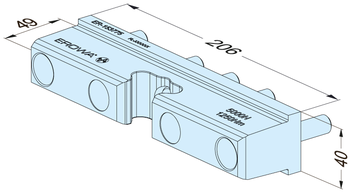

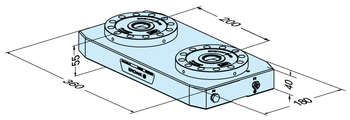

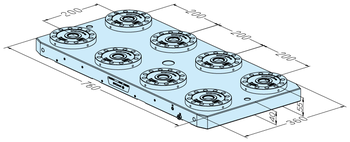

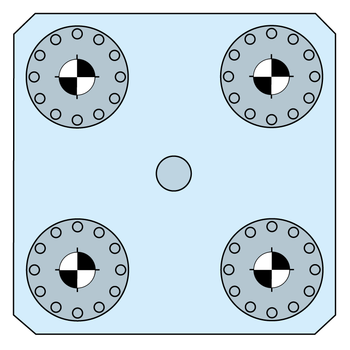

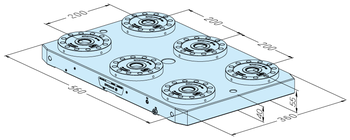

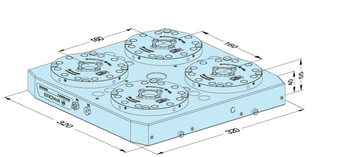

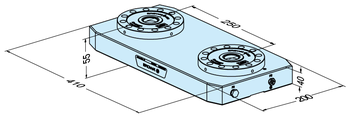

MTS base plates are available in various designs. Depending on the model, with 1, 2, 4, 6, or 8 MTS clamping jaws. We would also be happy to advise you on custom-made products.
Minimize setup times

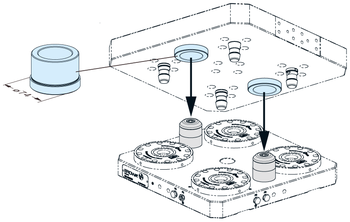

Workpieces and clamping devices are palletized. This means they can be transferred to the machine without further alignment if necessary.
There, they are held precisely and stably in position thanks to the MTS palletizing system. Further jobs are prepared outside the machine.
