Products Clamping Systems MTS (Modular Tooling System) MTS Adapter pallet VPC 52 automatic
ER-169341

MTS Adapter pallet VPC 52 automatic

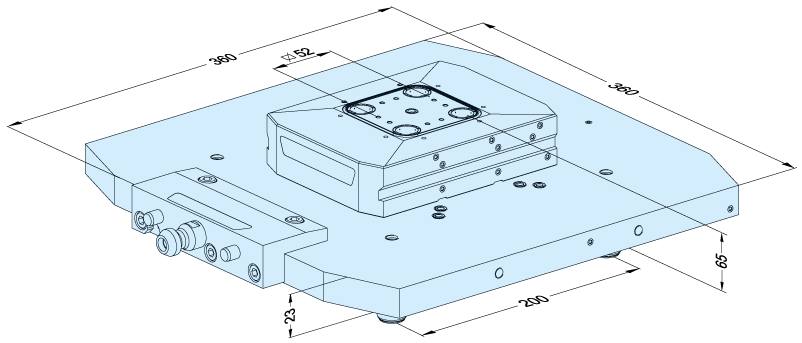

360 x 360 / 200 with changeover valve

Technical data

Technical data for MTS Adapter pallet VPC 52 automatic
Compatible chucks MTS | MTS 2.0 | MTS 4.0 | MTS 81 | MTS Single Chuck
Pitch 52 mm | 200 mm
Workpiece weight up to 1'000 kg
Workpiece size up to 1'000 x 1'000 x 1'000 mm
Workpiece identification EWIS™ Rapid

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Applications

Compressed Air
Compressed Air
Electropneumatic Control Unit
Electropneumatic Control Unit
Submerged
Submerged
Auto
Auto
Gripper RCS
Gripper RCS

Downloads

S-BA VPC (Vise Power Clamp)

Further information

Description
Adapter range from MTS to VPC.
Operation
Automatic control of the VPC via MTS air couplings of the MTS base plate.
Mounting Interface
On machines with MTS base plate for holding vises, fixtures and workpieces with pitch dimension 52.
Note
For automatic changing of pallets, vices, fixtures and workpieces with pitch dimension 52 into the MTS base plate and VPC.
