Integrated Tooling System (ITS)
Integrated Tooling System (ITS)
The EROWA ITS (Integrated Tooling System) was originally developed for die-sinking EDM and quickly set new standards in standardized electrode and workpiece clamping. Today, however, the ITS is far more than just an EDM clamping system: it has established itself as a compact, high-precision zero-point clamping system for a wide variety of manufacturing processes.
Thanks to its modular design, the ITS is used not only in die-sinking EDM but also in milling, grinding, measuring, and automated manufacturing cells. The standardized interface enables process-reliable workpiece clamping across multiple machining steps—manually or in combination with CNC automation.

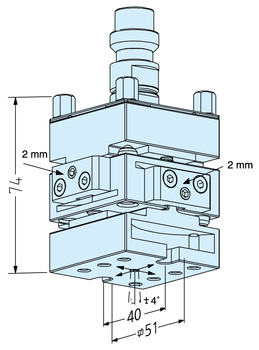

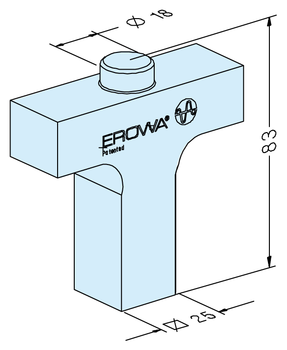

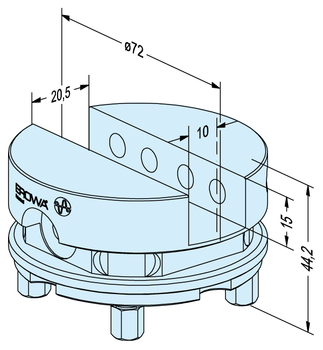

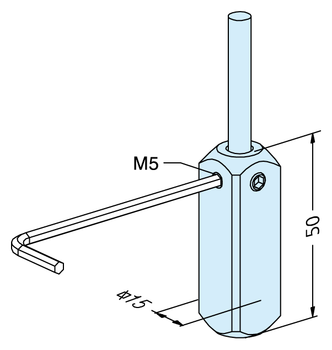

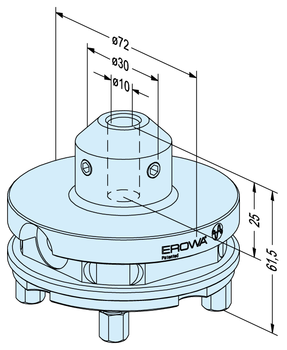

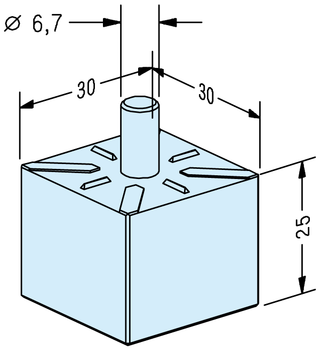

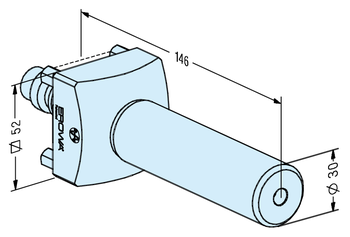

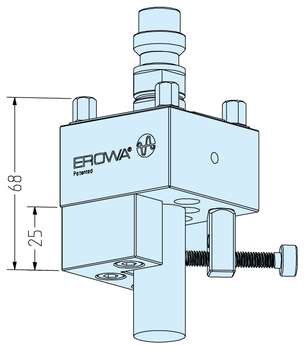

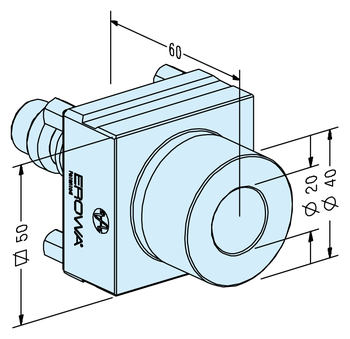

The combination of the proven ITS clamping principle and process-specific components such as electrode holders, adapters, and pallets ensures repeatable positioning of workpieces and electrodes throughout the entire process chain. With a repeatability of less than 0.002 mm, high system rigidity, and defined reference surfaces, the ITS system forms the basis for stable, reproducible manufacturing processes—from single-part production to automated series production.
Universally applicable

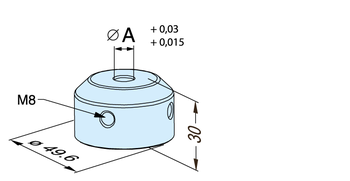

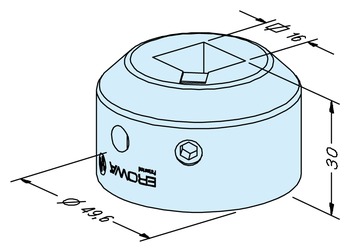

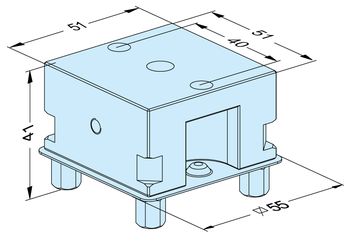

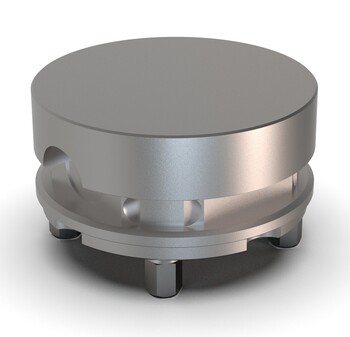

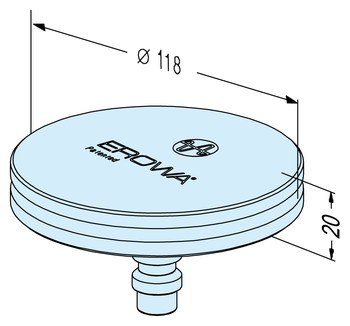

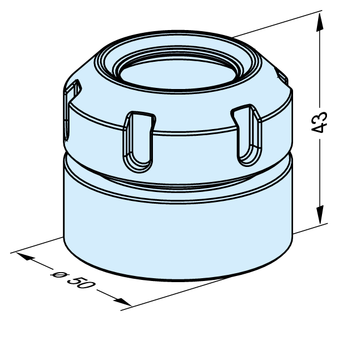

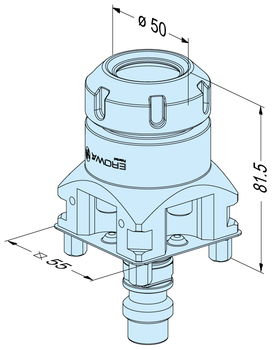

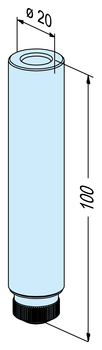

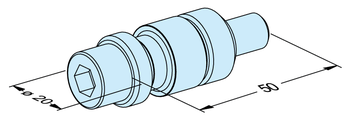

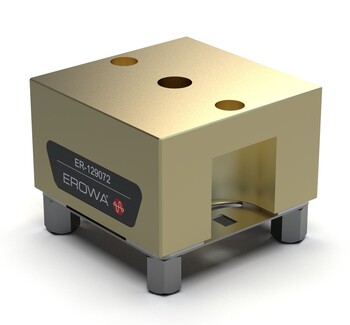

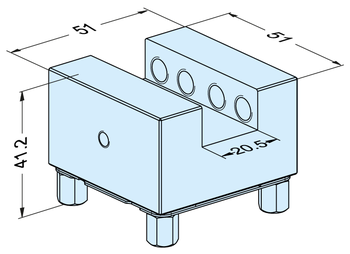

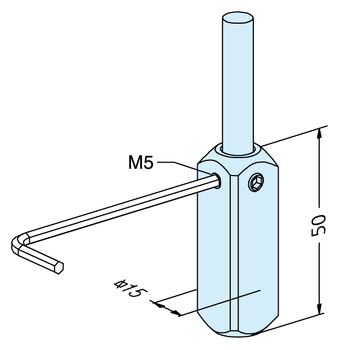

The EROWA ITS 50 holders C can be used universally for most machining technologies. Time-consuming changeovers and setups are no longer necessary.

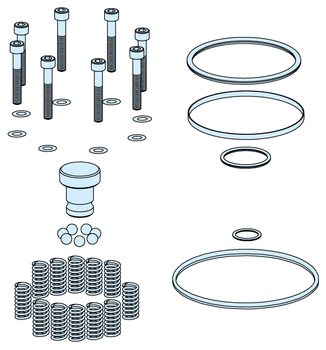

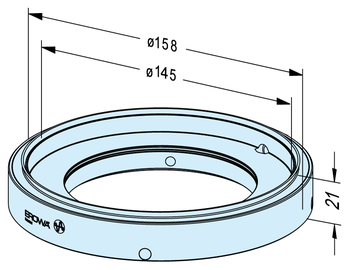

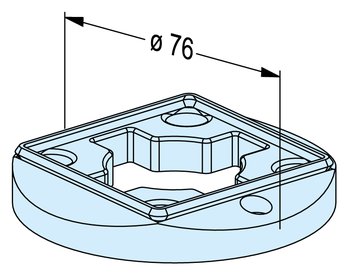

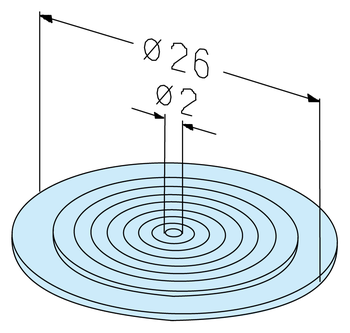

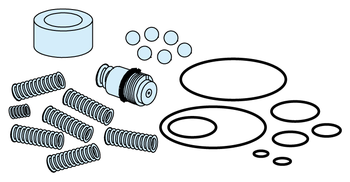

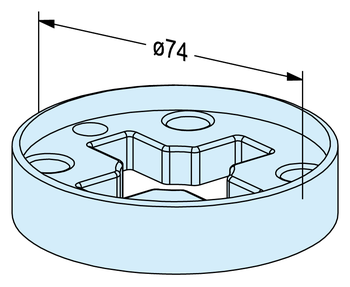

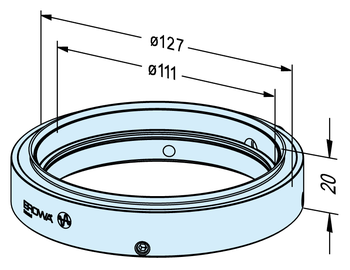

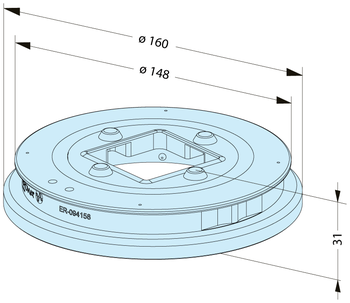

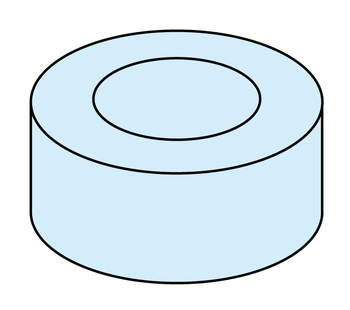

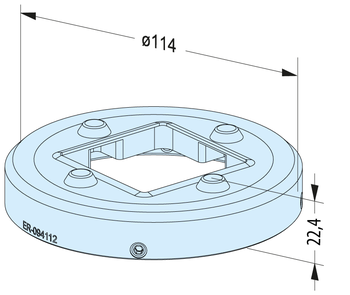

In addition, you can completely seal the EROWA ITS: The sealing ring is placed over the chuck on the machine table.
Automation

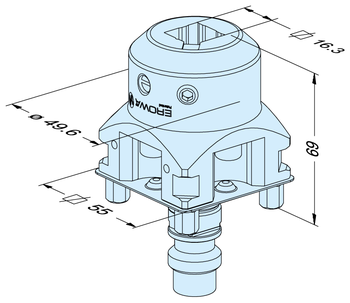

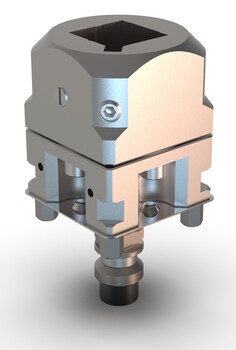

The ITS 50 holders C are designed for automated handling with an EROWA robot. They feature a gripper groove around their circumference.

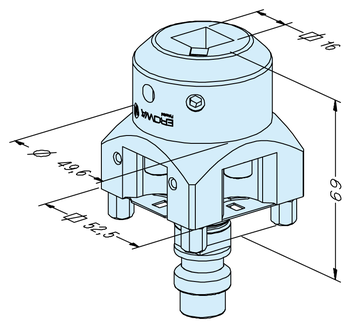

The robot gripper (model ITS 50 C) is used by the robot to pick up the holders. The corresponding gripper fits all standard EROWA robots.

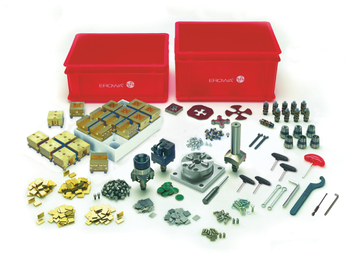

Wide range of variants

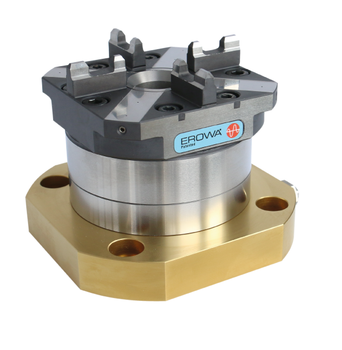

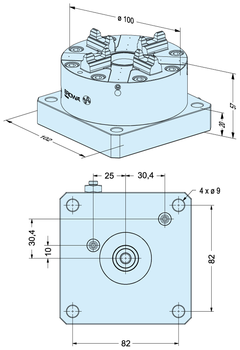

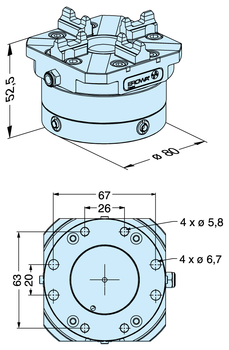

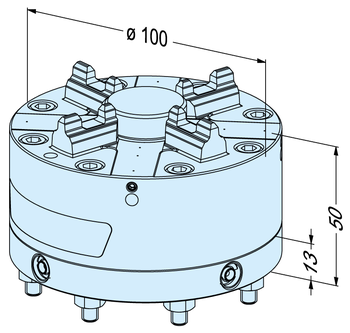

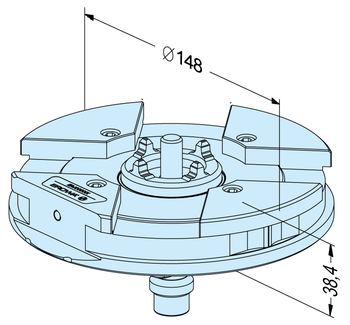

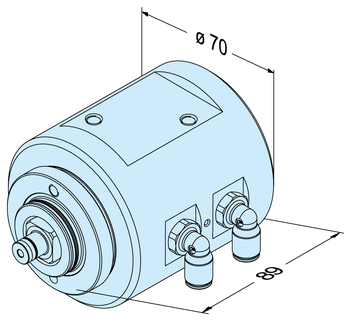

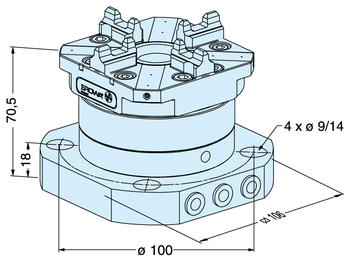

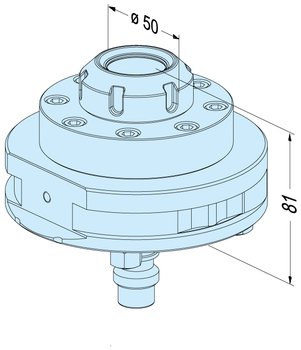

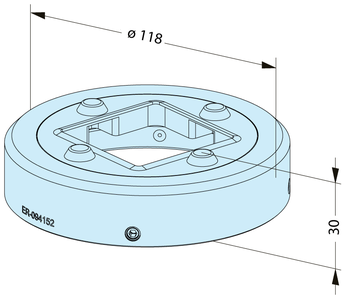

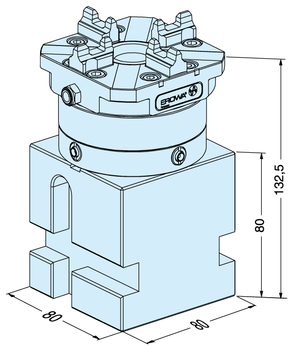

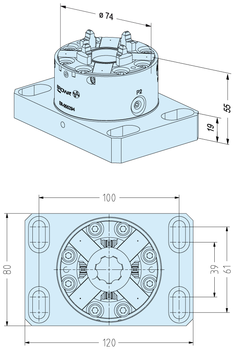

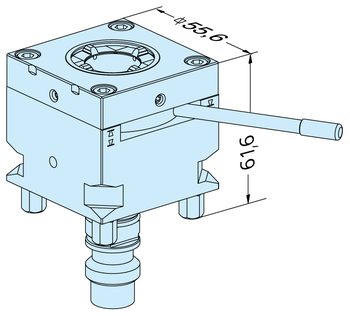

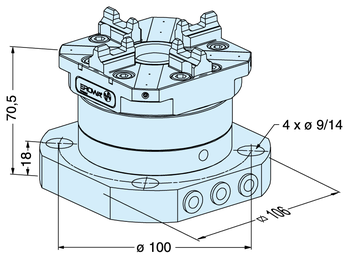

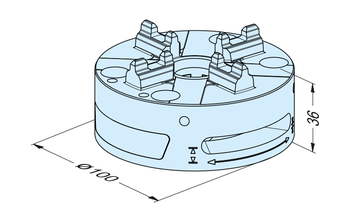

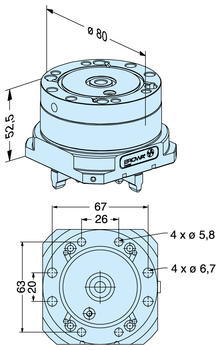

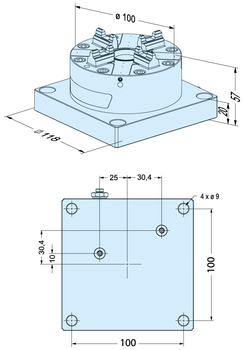

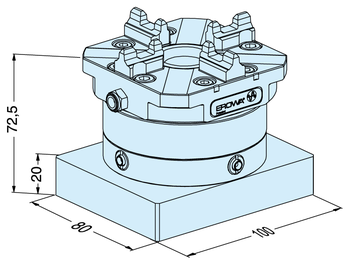

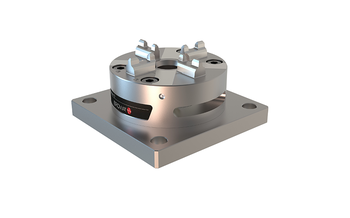

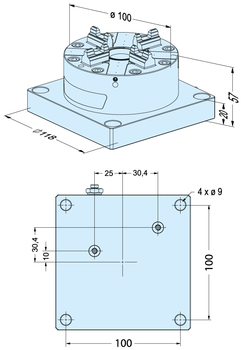

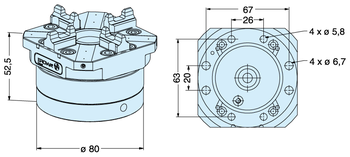

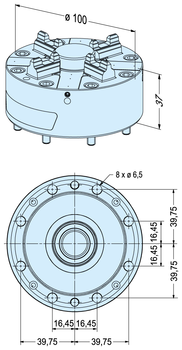

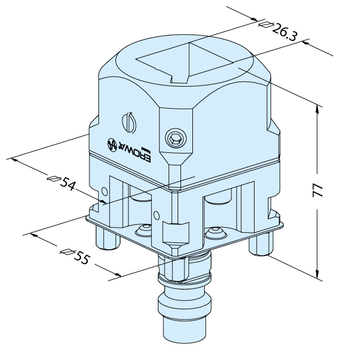

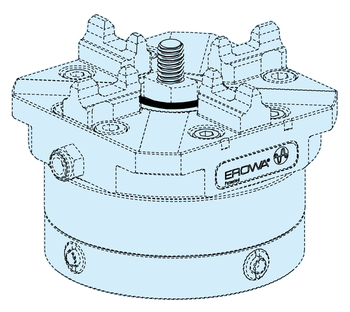

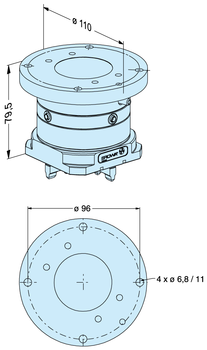

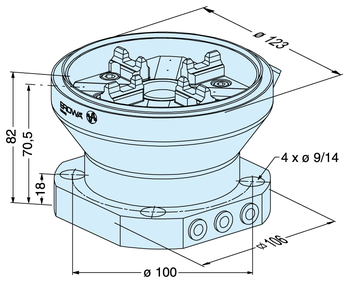

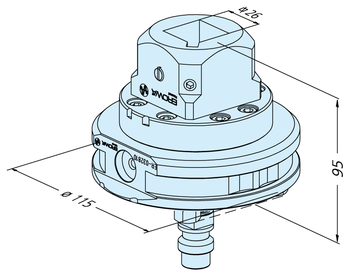

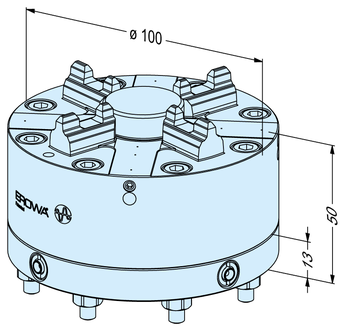

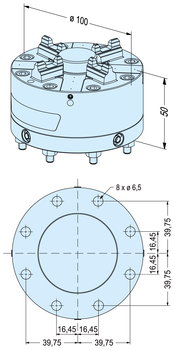

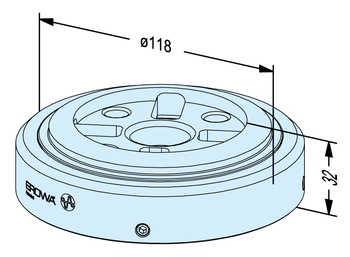

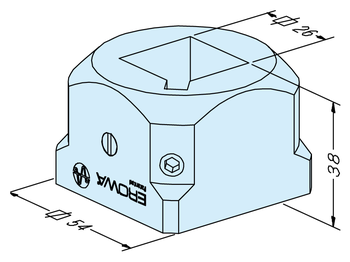

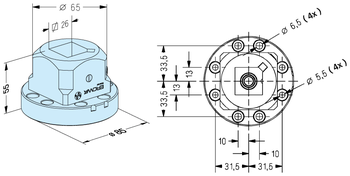

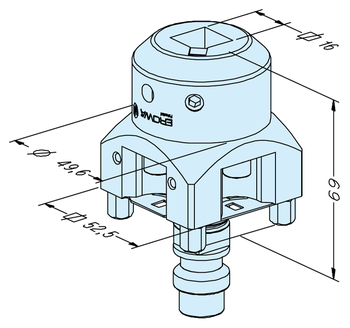

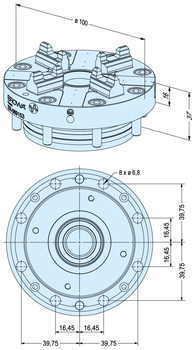

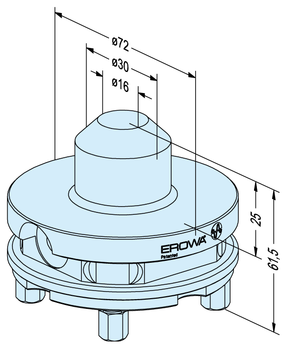

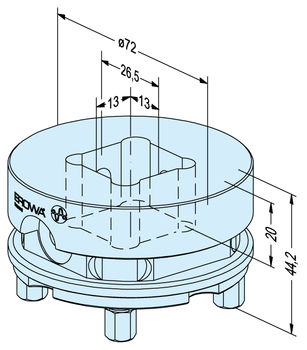

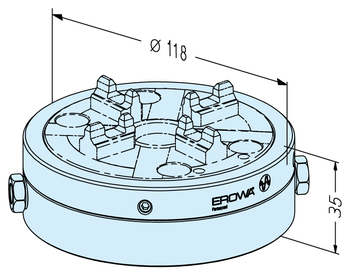

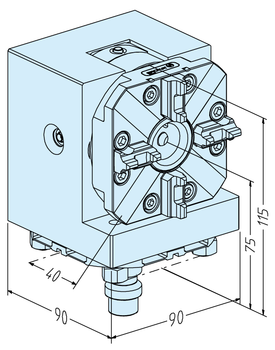

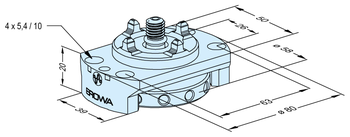

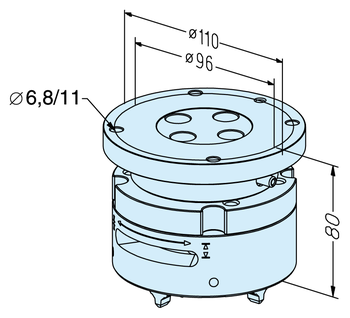

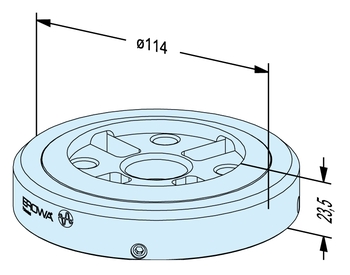

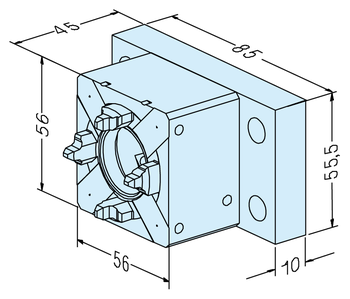

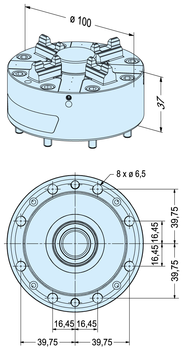

The possible applications for ITS chucks are as varied as the tasks involved in precision machining and tool and mold making. That is why we stock a wide range of different chuck variants.
