Products Clamping Systems EDM Centering plate G, 5 pieces
ER-036658

Centering plate G, 5 pieces

with supporting feet 10.2mm / 11.4mm

Technical data

Technical data for Centering plate G, 5 pieces
Technologies
EDM sinking
EDM sinking
WEDM
WEDM
Chip-removing processes
Chip-removing processes
Applications
With central flushing clearance
With central flushing clearance
Corrosion-resistant material
Corrosion-resistant material

Downloads

User Manual

Further information

Description

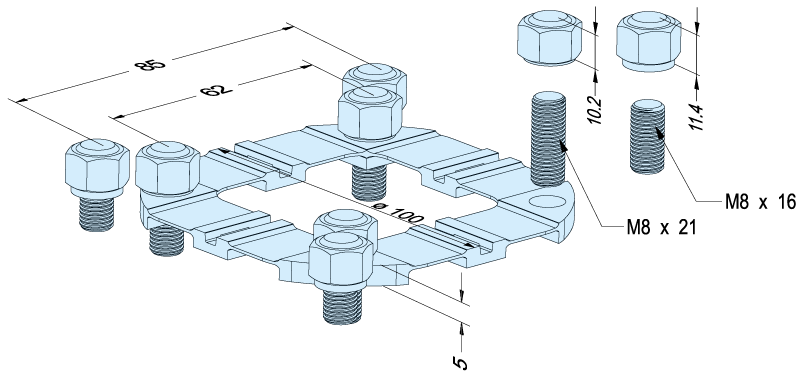

Centering plate G (ground), rust-resistant, including 8 supporting feet SW13, of which 4 supporting feet with height 10.2mm and 4 with height 11.4mm.
Mounting Interface
For workpieces, fixtures and gauges in chip-cutting production.
Note
Can also be used to repair older pallet types ø 148 G, for instance ER-015777, ER-015899, ER-032699, etc.
Mounting
According to the fitting instructions supplied.
