PowerChuck P
PowerChuck P
The EROWA PowerChuck P is the compact all-rounder among the zero point clamping systems. With clamping powers of up to 10,000 N and a repeatability < 0.002 mm, it guarantees reliable workpiece clamping under the highest process loads.
The pneumatically operated mechanism works clamped without pressure and therefore offers the highest dimension of safety. The PowerChuck P is characterized by its flat design and robust construction. It is suitable for both stand-alone machines and automated production cells. The proven EROWA interface makes it completely compatible with all standard pallet systems, from electrode holders to ITS 50, ITS 148 and many more.
In conjunction with the automation solutions EROWA Robot Compact, EROWA Robot Dynamic, EROWA Robot Lift, EROWA Robot Six and the JMS 4.0 process controller, the EROWA PowerChuck P becomes the central turning disc in the EROWA Flexible Manufacturing Concept.
It stands for maximum clamping power, maximum process reliability and precise, standardized production.
Securely automated

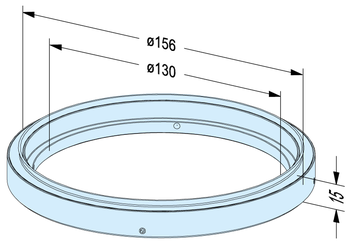

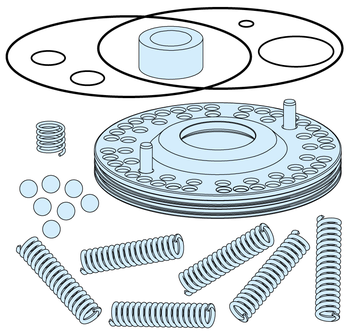

The PowerChuck P workpiece palletizing system can be fully automated. EROWA offers the right handling device for every application and all technologies. Sealing rings protect the chucks and guarantee secure automatic loading.
Compatibility and system integration
The PowerChuck P is fully compatible with the EROWA UPC, MTS, PC210, and ITS systems for EDM tooling.
The identical interface allows workpieces or pallets to be easily exchanged between machines - without re-referencing or setup effort.
Consistent and precise basis

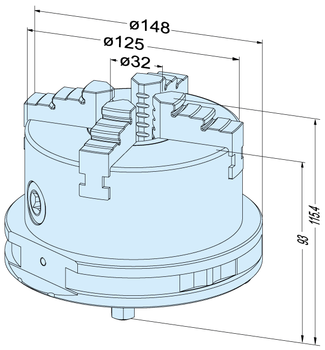

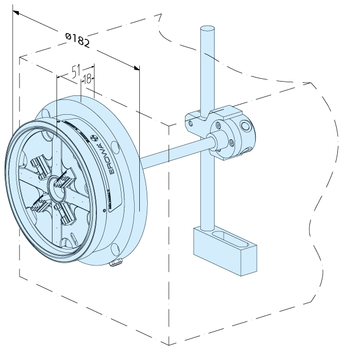

Whether on milling or drilling machines, on profile or surface grinding machines, or on the spindles of dividing heads and lathes, the PowerChuck P chuck is the consistent, flexible, and precise basis for workpiece carriers.
Best running characteristics

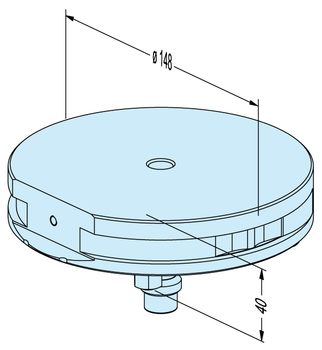

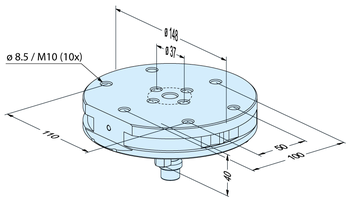

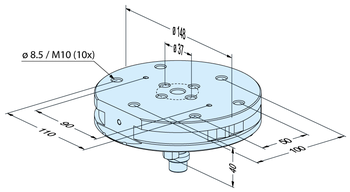

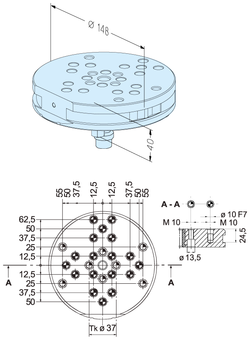

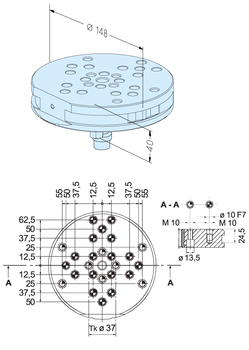

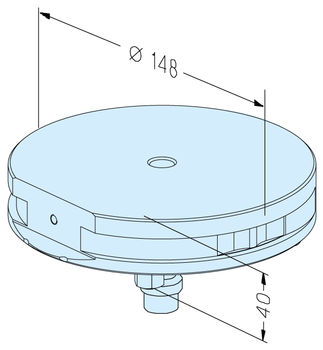

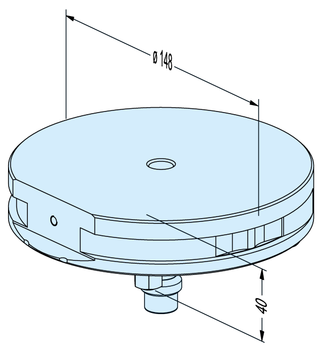

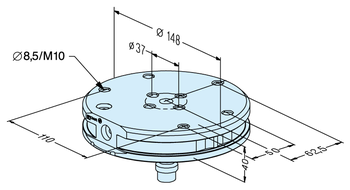

The 148 mm diameter pallet with optimized center of gravity offers the best running characteristics for turning applications.
High clamping force
The 10,000 N clamping force in the PowerChuck P chuck guarantees powerful and reliable holding during workpiece machining.
The compact design and low overall height of the clamping system leave plenty of space for workpieces and their machining.
Reliable and low maintenance
The extremely low-wear ceramic balls in the closure guarantee consistent, low-maintenance performance over an even longer period of time.
