Products Clamping Systems PCP (PowerChuck P) Angle pallet ø 148 P
ER-115721

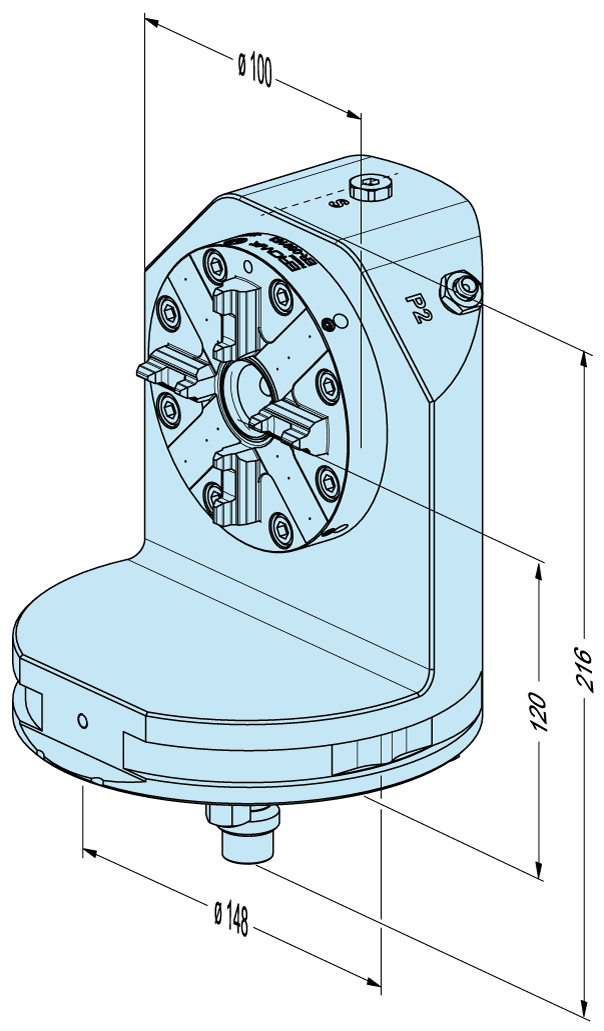

Angle pallet ø 148 P

with ITS Chuck 100 P

Technical data

Technical data for Angle pallet ø 148 P
Product Family PowerChuck P
Product Category Pallets, spigots
Technologies
EDM sinking
EDM sinking
Chip-removing processes
Chip-removing processes
Applications
Operate with compressed air jet
Operate with compressed air jet
Suitable for automated use
Suitable for automated use
Gripper 148
Gripper 148

Downloads

User Manual

Further information

Description
Stainless steel. Centering integrated in pallet. With two nipples (ER-087788) for the air duct.
Clamping Force
ITS chuck 100 P: 5,000N
Connections
On the side and at the rear with two lines.
Operation
With control unit or with compressed-air pistol.
Mounting Interface
Chuck adaptation with a 90° angle. Ideal with the PowerChuck P ø150 with 2 air ducts (ER-115290).
Note
To accommodate electrode holders and ø115, 148, PM56, PM60 and PM85 Precise pallets.
