Heavy-duty automation for maximum flexibility and capacity.

EROWA LoadMaster

The EROWA LoadMaster is the high-performance automation system for large and heavy workpieces.
With its solid design and linear traversing axis, it is suitable for manufacturing companies that want to automate heavy component weights, large pallet formats or extensive machine layouts – across all industries and future-proof.

Thanks to its modular architecture, the LoadMaster combines large storage capacity, long travel distances, and precise handling. It can be used in a compact or modular configuration, enabling it to serve multiple machines, transport heavy workpieces, and accommodate large pallet systems – up to pallet weights of 5,000 kg.

The EROWA LoadMaster is a true game-changer, especially in heavy-duty machining involving large components, massive blanks, and limited space.

Why the EROWA LoadMaster is convincing:

  • Heavy load capacity up to 5,000 kg - suitable for large pallets, massive workpieces and demanding applications.
  • Compatible with EROWA GTS - Giant Tooling System - ideal for large die plates and components with maximum precision.
  • 360° swivel function - for maximum flexibility.
  • Length linear traversing axis - connects magazines, machines and set-up stations in one line.
  • Multi-machine handling - serves several machining centers efficiently and reliably.
  • High stability and precision - designed for demanding production conditions.
  • Flexible magazine systems - high rack, plate, grid or customer-specific magazines.
  • Process-safe integration - ideal for fully automated high-performance cells.
  • Part sizes up to 3,000 mm x 2,000 mm x 2,000 mm (lxwxh), depending on weight.
Directly to Products
To Product Brochure

Technical specifications: EROWA LoadMaster

Transfer weight up to 5'000 kg
System height up to 5.0 m
Length of the rail up to 50 m
Process control system EROWA JMS 4.0

Advantages and Functions

The LoadMaster Compact enables efficient and ergonomic setup processes for large workpieces.

Safe and easy operation

Fully accessible or accessible via sliding doors. The setup stations are integrated components of the LoadMaster production lines. Versions with lifting unit, with rotating and tilting table, or with rotary table are available. All setup stations are accessible via overhead crane. The robots are controlled via the JMS 4.0 process control system.

The LoadMaster gripper enables precise and automated handling of workpieces within the storage system.

Reliable loading

Up to 5,000 kg transfer weight. Thanks to the ingenious kinematics with very little space requirement. With the 360° swivel function, any position in the magazine and on the machine tables can be reliably reached.

The LoadMaster magazine offers high storage capacity for automated workpiece storage.

Variable magazines

The magazines are built upwards. The storage spaces are arranged over two, three, or four floors in a very cost-effective and space-saving manner. The individual levels are optimally configured to suit standard workpiece sizes.

Products

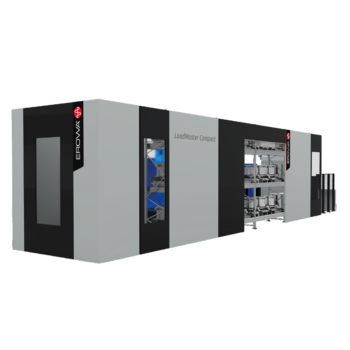

EROWA LoadMaster® Compact
