Vise Power Clamping System
Vise Power Clamping System
The EROWA VPC (Vise Power Clamp) is a modular clamping system for powerful and precise clamping of centric clamps, fixtures, and workpieces with 52 mm or 96 mm center distances. Developed for manufacturing environments where high clamping forces, reproducible results, and automation capability are crucial.
At the heart of the system are two VPC chuck sizes, tailored to the respective applications. In combination with the appropriate VPC clamping pins, a defined, stable interface between the machine, clamping device, and automation is created.
This system logic enables a high degree of flexibility in workpiece production – regardless of component geometry or batch size.
In combination with the appropriate EROWA loading devices, the VPC clamping system can be fully integrated into automated production cells. Clamping devices are handled, positioned, and loaded and unloaded automatically – ideal for low-manpower shifts and lights-out operation.
Universally applicable
For clamping devices and fixtures: Fast, reproducible and automation-proof clamping. Switching between different clamping devices is efficient and does not require time-consuming changeover processes.
Automation-capable
Full integration into automated production cells: clamping devices are handled, positioned and loaded and unloaded automatically – ideal for low-staff shifts and lights-out operation.
Quick & easy to prepare

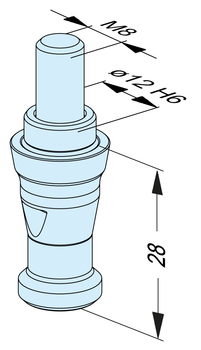

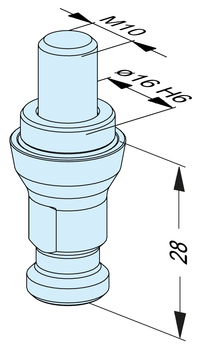

Preparation is simple: screw the VPC clamping pin into the workpiece clamp, the fixture or directly into the workpiece and tighten – done!
Two system sizes
The VPC clamping system is available in two sizes:

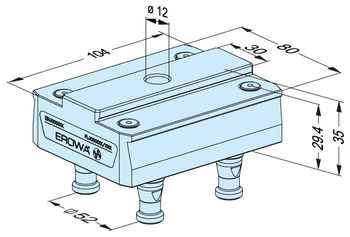

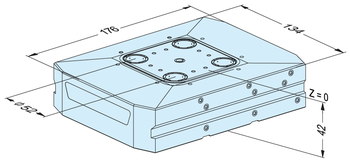

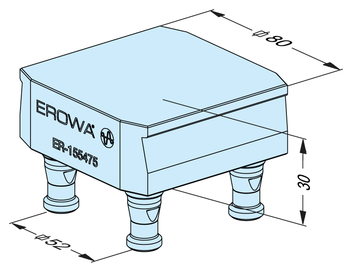

• VPC 52 chuck and chucking spigots for pitch 52

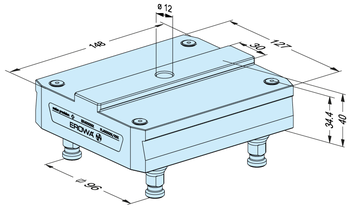

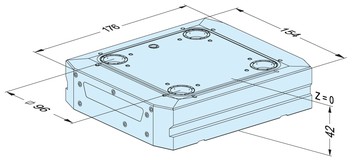

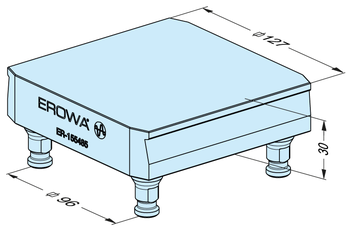

• VPC 96 chuck and chucking spigots for pitch 96
Performance & Precision

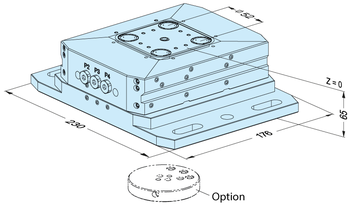

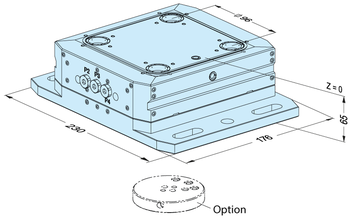

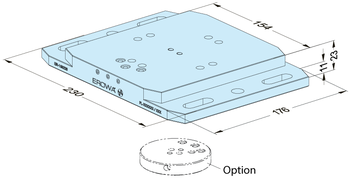

The proven, functional and sophisticated clamping technology of VPC chucks includes integrated Z-support cleaning, status monitoring and a circumferential seal. VPC chucks can be mounted directly or via a base plate on the machine table.
Powerful and precise
With a clamping force of 15 kN (reclamped), the workpiece clamps or workpieces are clamped powerfully and precisely in the VPC chuck. The workpiece carrier can be changed in a matter of seconds with a repeat accuracy of <0.003 mm.
