ER-150890

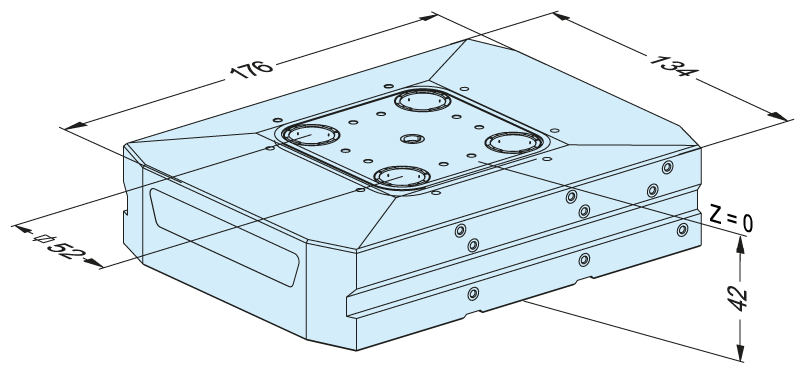

VPC Chuck 52
without base plate
Technical data
| Number of lines | min. 2 (opening & reclamping) | Optional: + 1 (for cleaning and combined locking & presence check) |
|---|---|
| Operation | With control unit or compressed air gun |
| Indexing | 4 x 90° |
| Reclamping pressure | 6 bar pneumatic |
| Reclamping | Required |
| Opening pressure | 6 bar pneumatic |
| Repeatability | < 0.003 mm |
| Clamping power | 18'000 N |
| Clamping mechanism | Spring force, clamped without pressure |
| Pitch | 52 mm |
| Workpiece size | up to 160 x 160 x 160 mm |
| Technologies |
Chip-removing processes
|
| Applications |
Manual Operation
Operate with compressed air jet
Operate using the manual control unit
Operate using the electropneumatic control unit
Suitable for automated use
|
