Wire EDM
Wire EDM

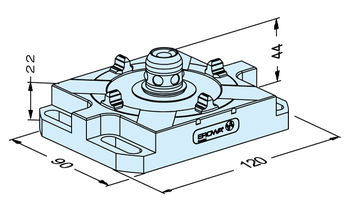

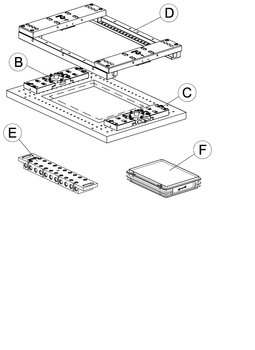

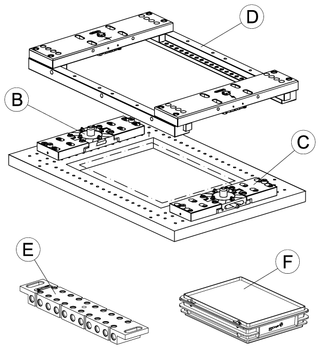

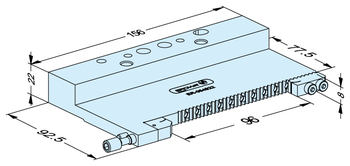

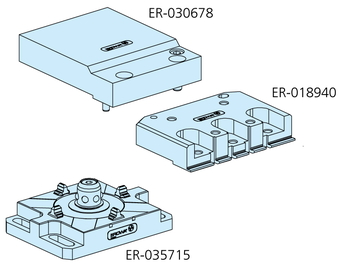

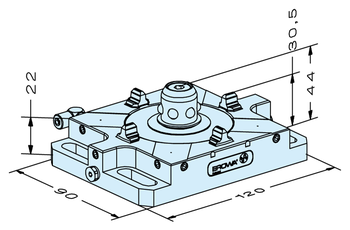

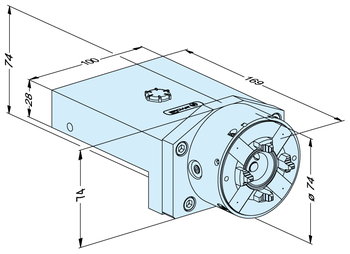

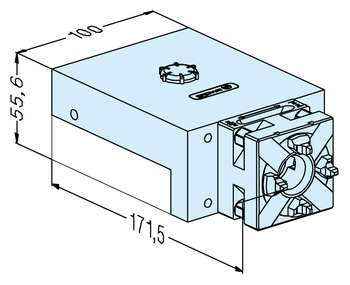

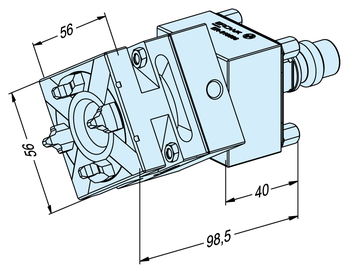

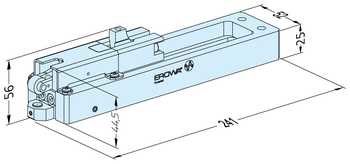

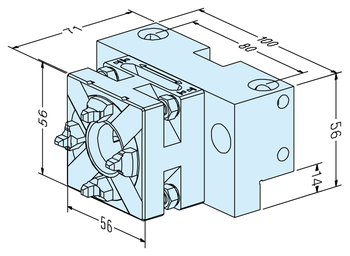

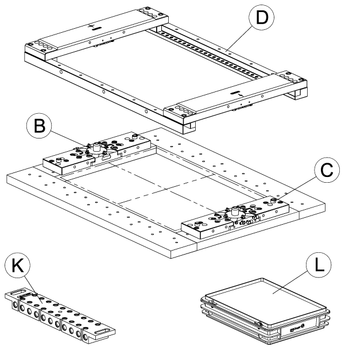

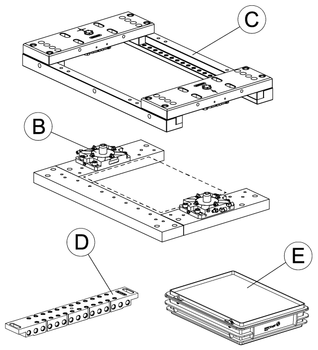

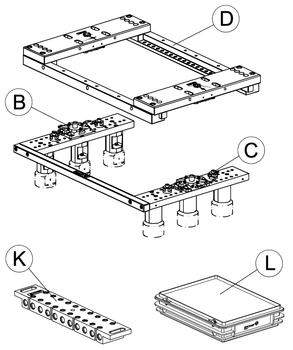

The EROWA Wire EDM Tooling System is a complete tooling system for single and multiple-part palletizing in the WEDM process. It is a complete modular clamping concept for WEDM. It combines flat chucks (such as the products FSF pneumatic, FSF manual, Basic WEDM) with compact chucks (QuickChuck 50, RSA 50) as well as clamping frame and beam systems (PalletSet W, FrameSet).
All components are corrosion-resistant and optimized for use in liquid environments. With a repeatability of < 0.001 mm, they can be preset outside the machine and reliably loaded automatically using EROWA automation equipment.
Automate
Automatic loading of wire EDM machines significantly increases the number of productive hours.
An EROWA robot places the workpiece carrier precisely and quickly on the machine. We would be happy to advise you on a suitable automation solution.

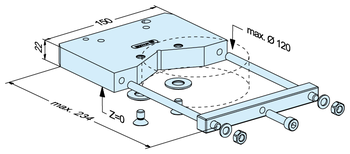

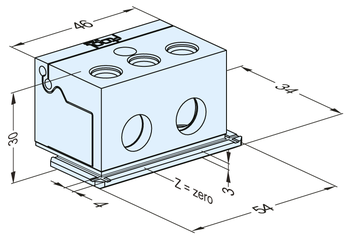

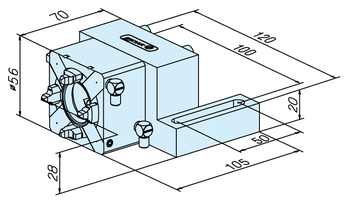

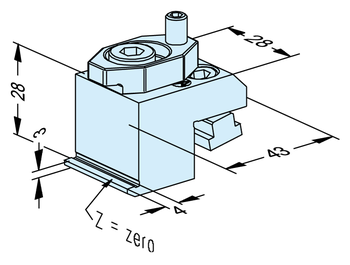

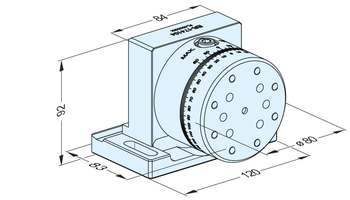

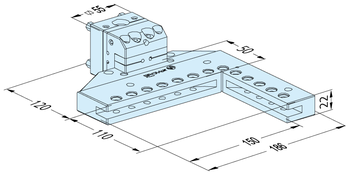

Special workpiece holder

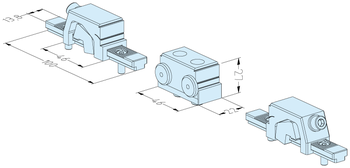

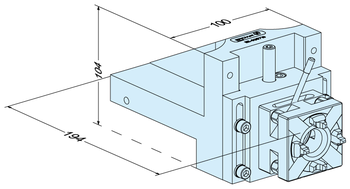

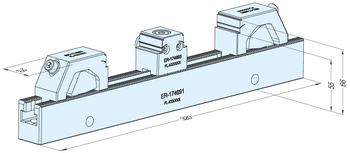

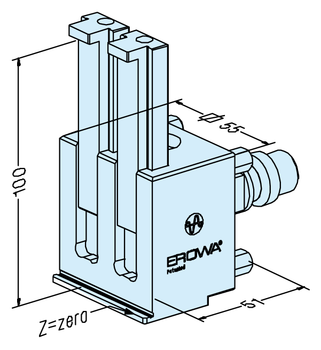

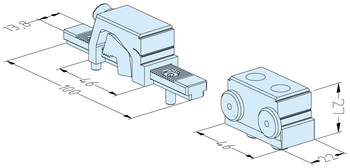

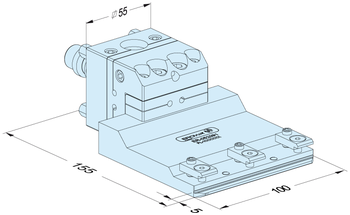

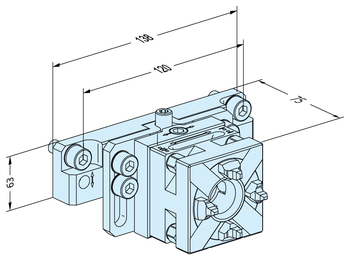

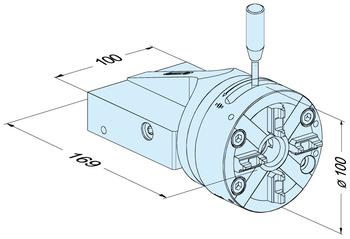

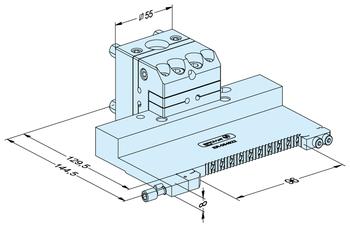

There are suitable and flexible clamping elements for every size and type of workpiece. Prism clamping element for cylindrical parts. Mounted on the pendulum holder, the workpiece can then be adjusted in three axes. The machine remains productive while the next job is being prepared. Setup work is carried out in an optimal environment and without time pressure.

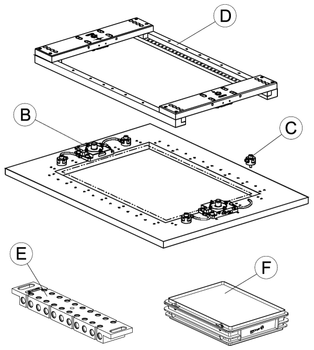

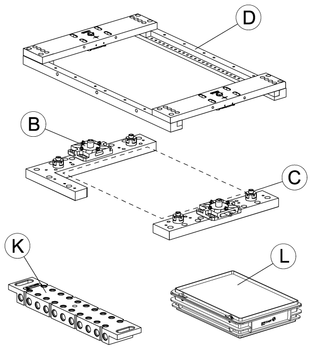

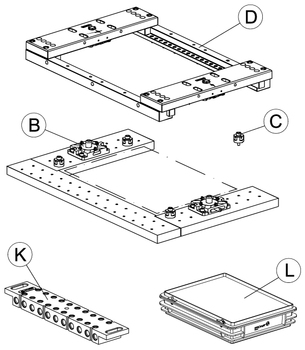

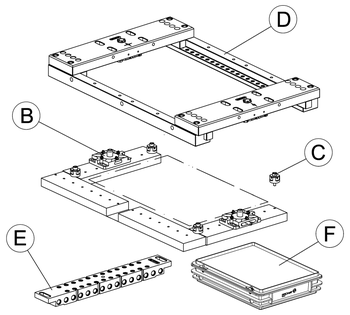

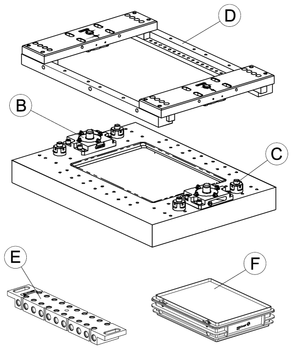

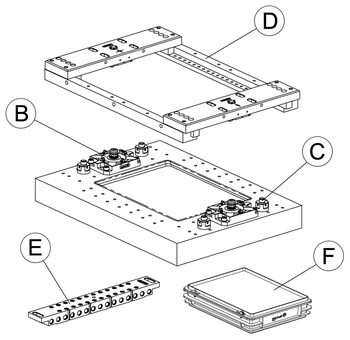

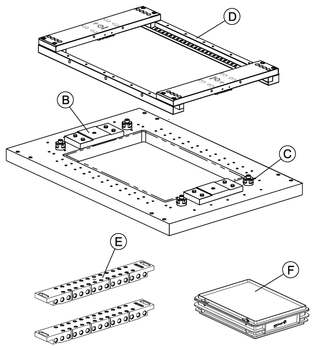

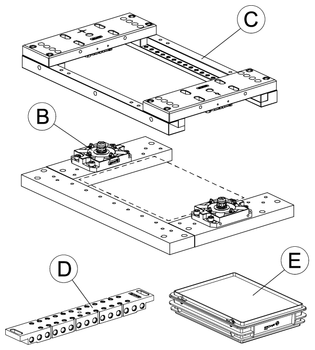

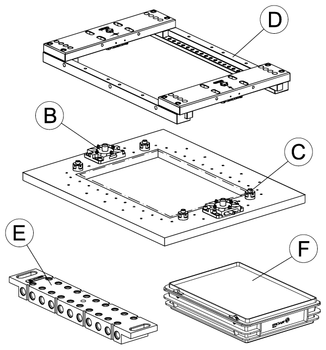

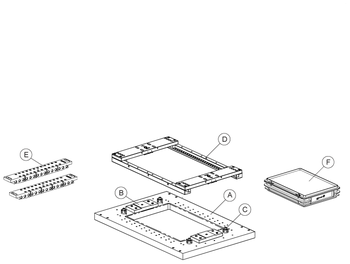

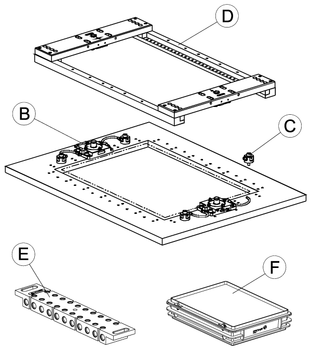

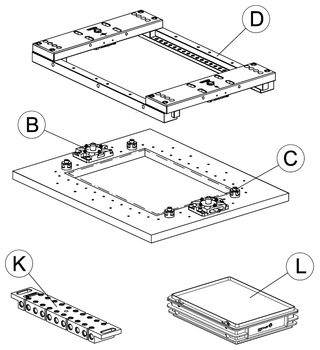

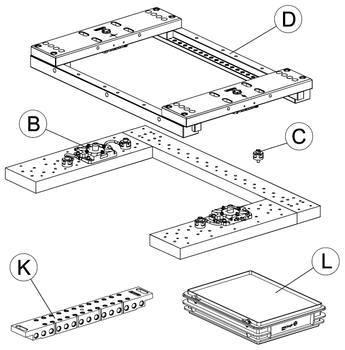

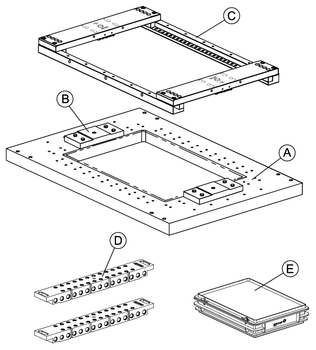

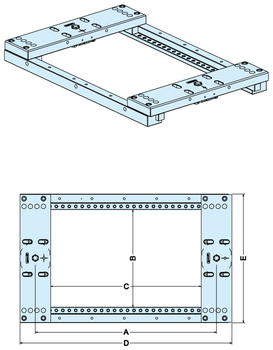

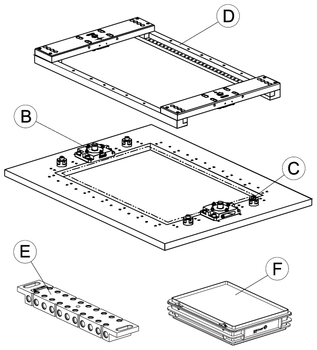

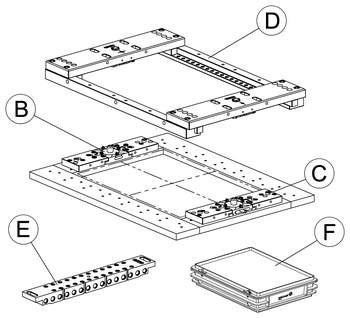

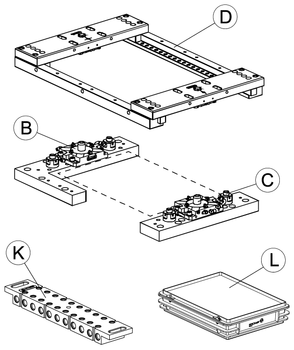

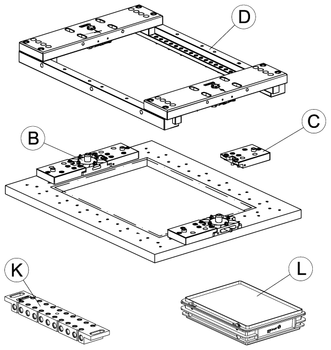

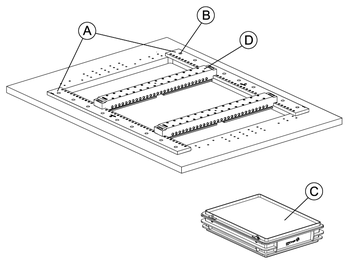

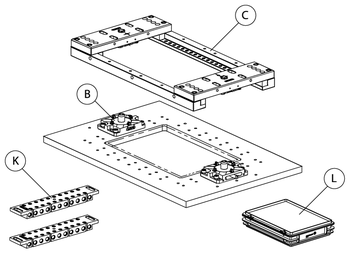

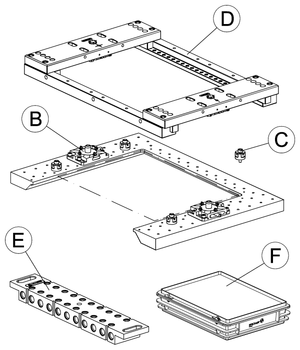

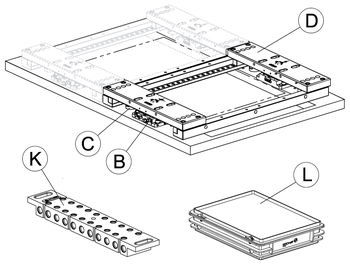

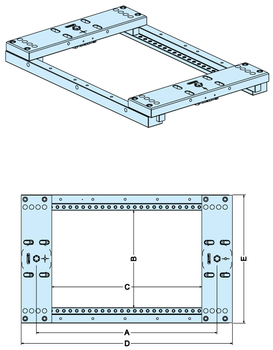

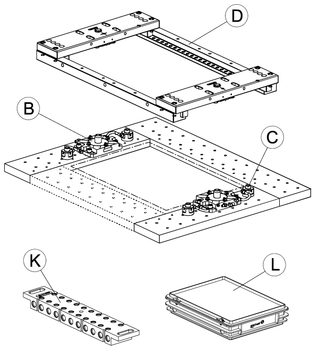

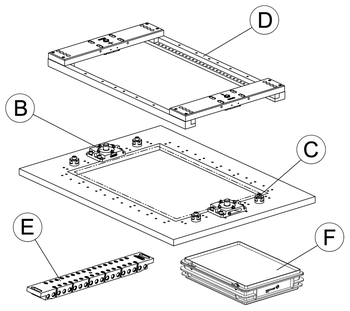

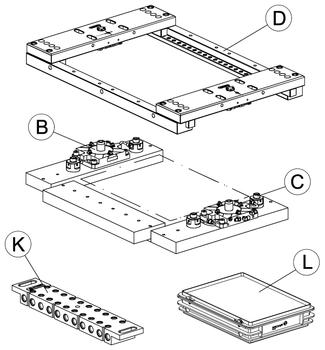

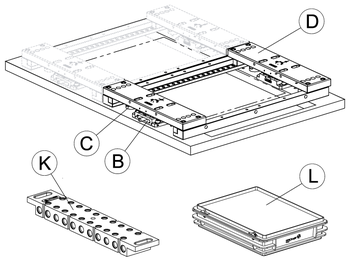

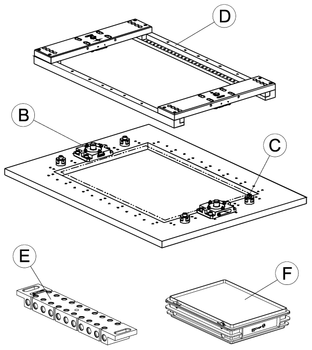

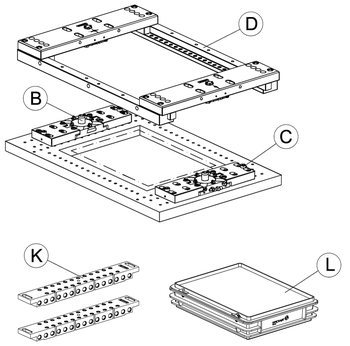

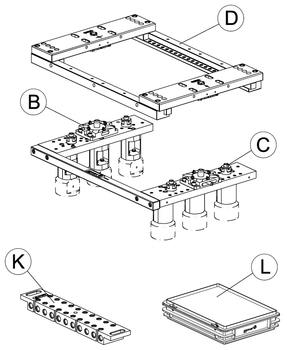

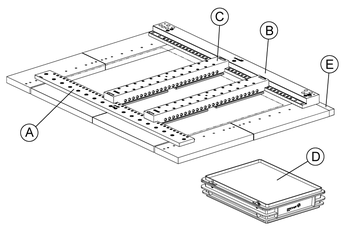

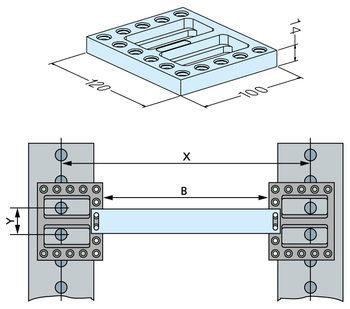

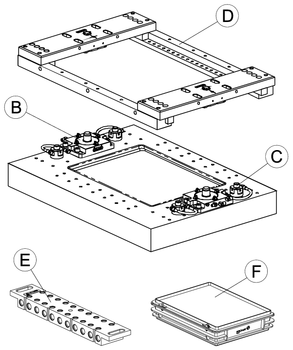

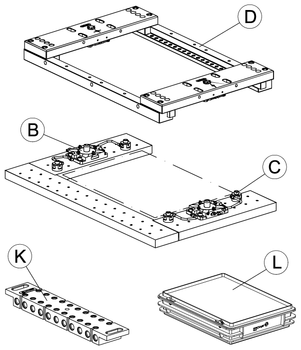

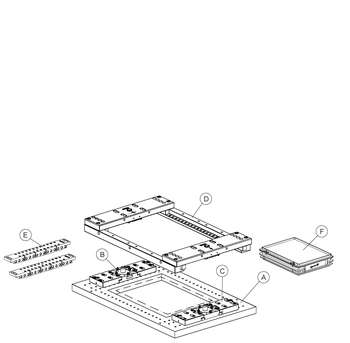

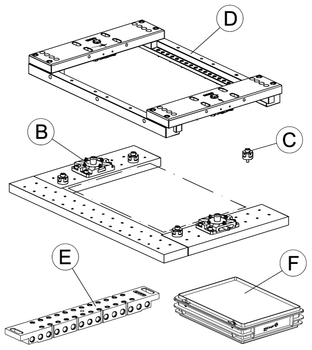

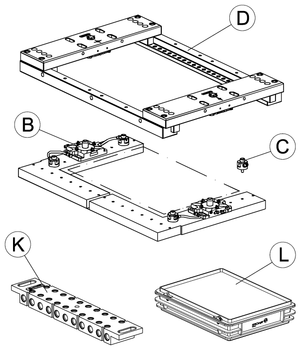

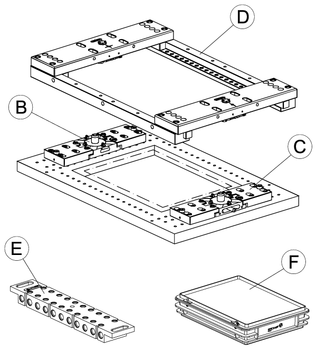

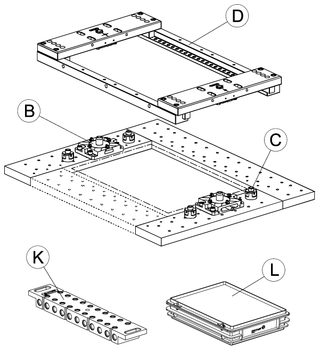

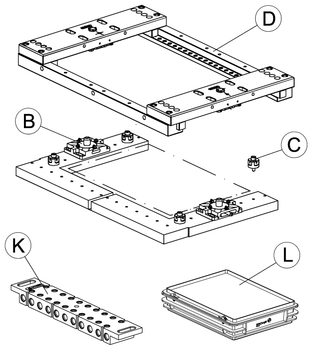

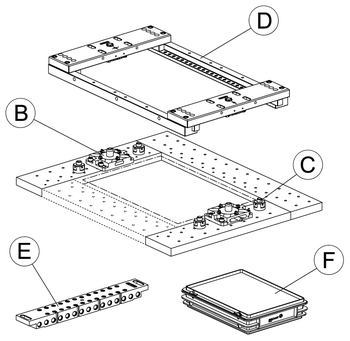

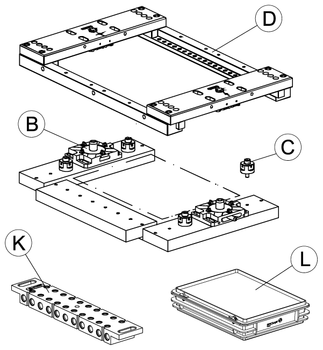

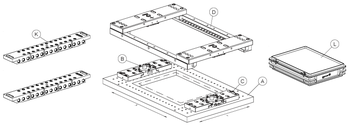

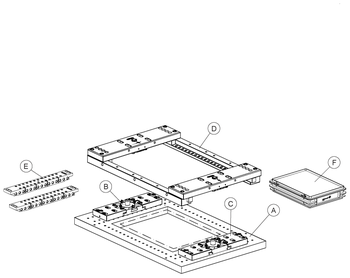

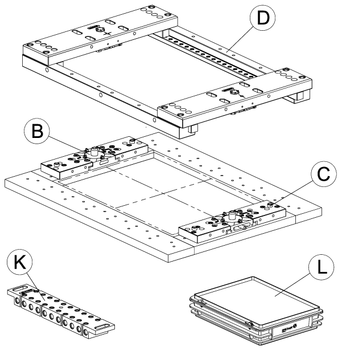

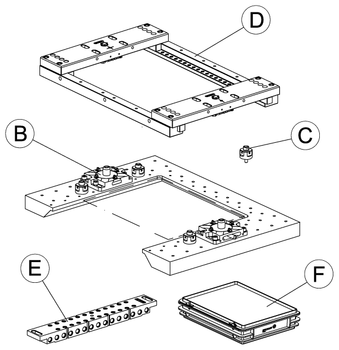

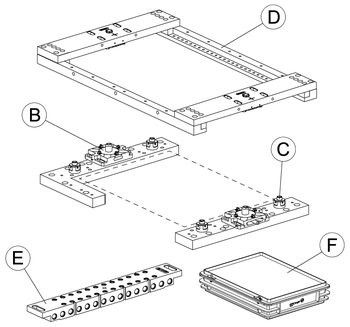

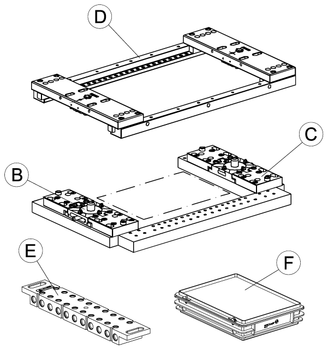

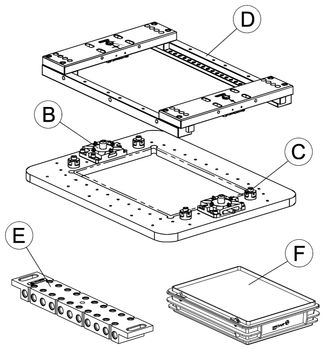

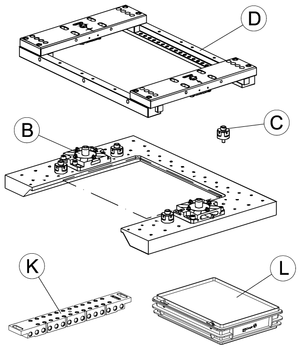

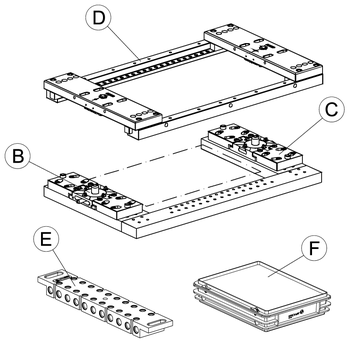

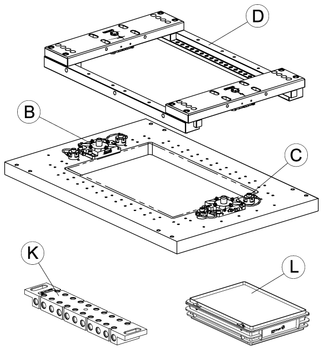

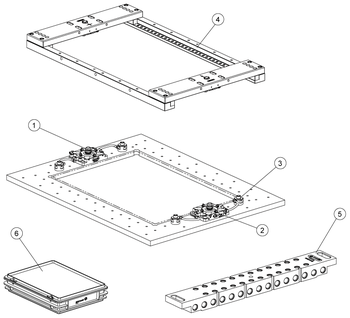

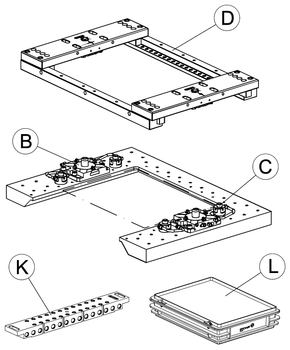

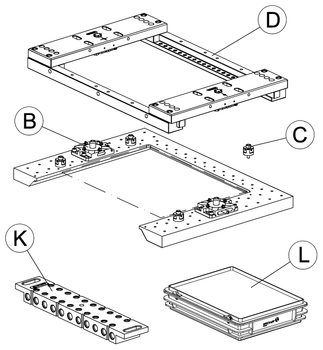

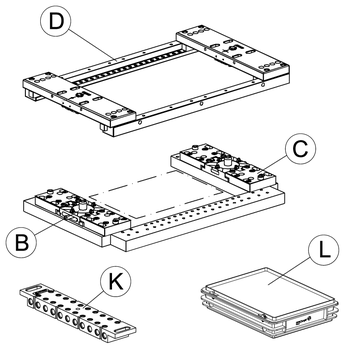

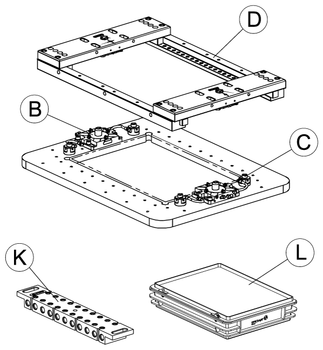

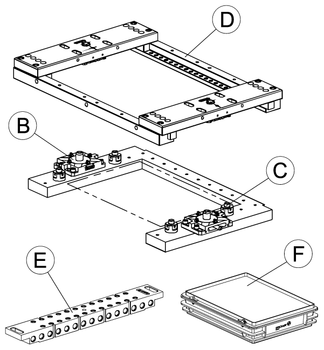

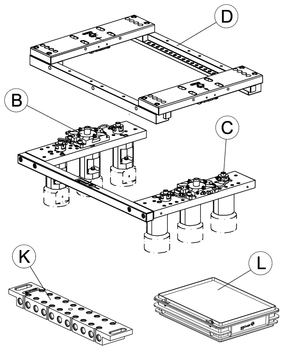

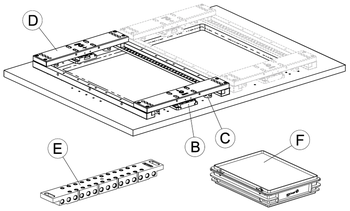

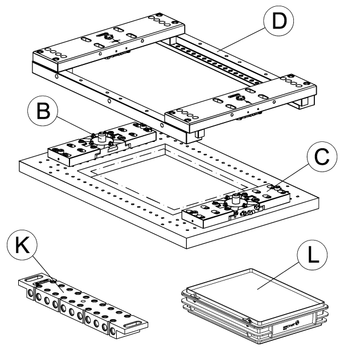

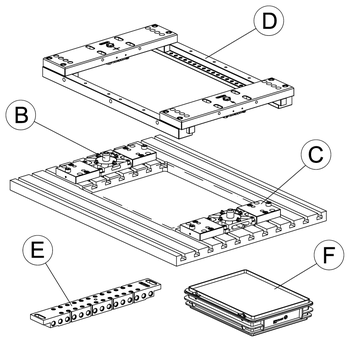

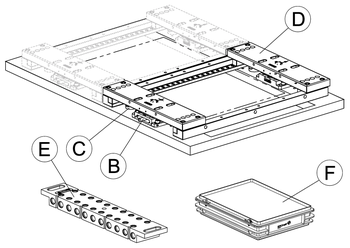

Clamping frame for various workpieces

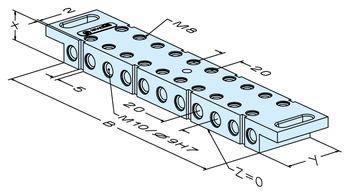

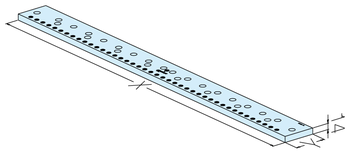

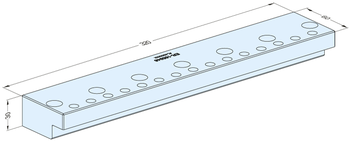

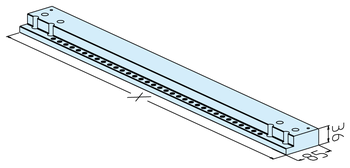

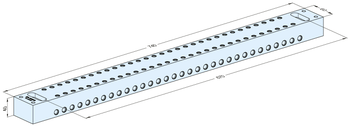

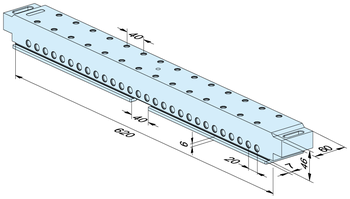

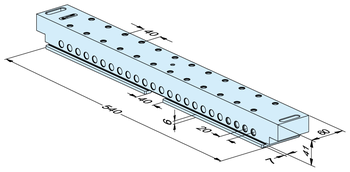

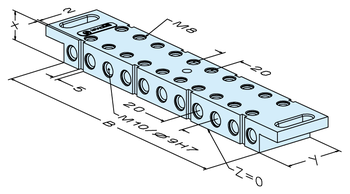

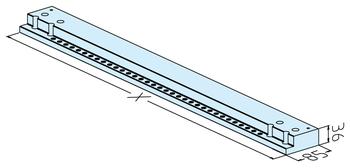

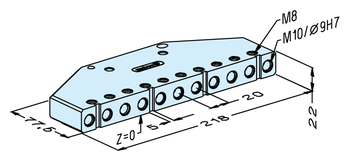

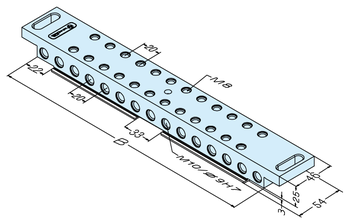

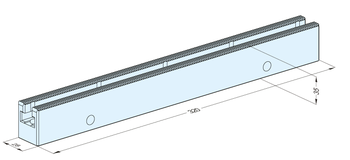

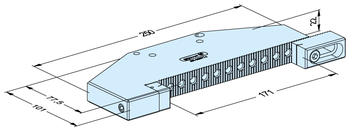

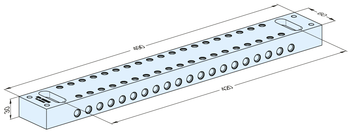

Multiple palletizing in the clamping frame. The workpieces to be machined are attached to clamping beams, which are individually arranged in the clamping frame.
In this way, workpieces with different dimensions are positioned in the same clamping frame and different jobs are manufactured in the same clamping setup.
