Products Clamping Systems WEDM Alignment pallet for PalletSet W
ER-055158

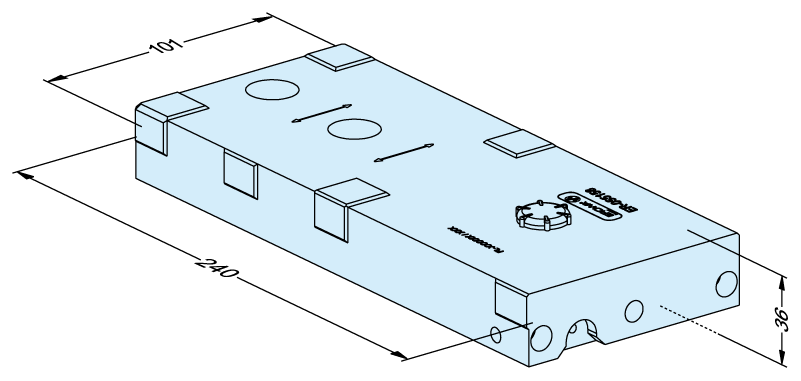

Alignment pallet for PalletSet W

Technical data

Technical data for Alignment pallet for PalletSet W
Repeatability < 0.002 mm
Technologies
WEDM
WEDM
Applications
Manual Operation
Manual Operation
Suited for submerged operation
Suited for submerged operation
Corrosion-resistant material
Corrosion-resistant material

Downloads

User Manual

Further information

Description
Hardened, ground gauge with lateral reference surfaces and two defined reference boreholes.
Mounting Interface
To determine the reference point and to align chucks.
