ER-062821

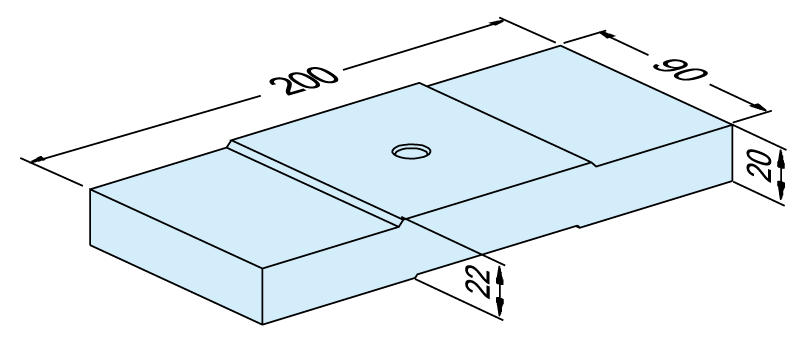

Plate FrameSet Fix 150mm

Technical data

Technical data for Plate FrameSet Fix 150mm
Repeatability < 0.002 mm

Technology

Wire-EDM sinking
Wire-EDM sinking

Applications

Manual
Manual
Submerged
Submerged
INOX
INOX

Further information

Description
Plate to attach the FrameSet clamping frame.
Mounting Interface
On WEDM centers with FrameSet clamping frames,
to be mounted directly on the Z=0 base.
Installation
to the base according to operating instructions.
