Products Clamping Systems WEDM Z-support PalletSet W universal
ER-025115

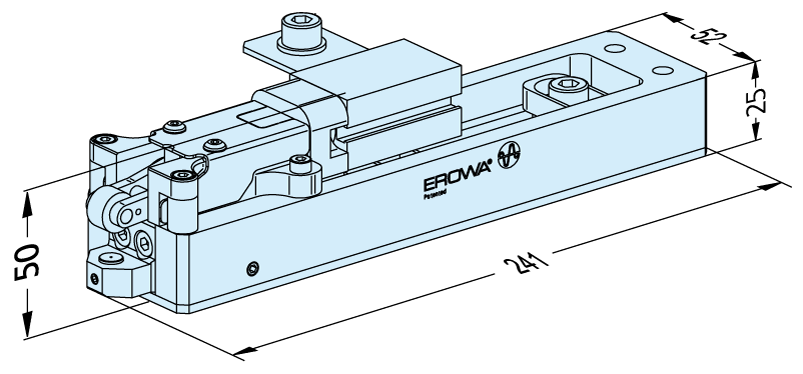

Z-support PalletSet W universal

pneumatic, 1 pair

Technical data

Technical data for Z-support PalletSet W universal
Repeatability < 0.002 mm
Technologies
WEDM
WEDM
Applications
Operate using the manual control unit
Operate using the manual control unit
Suited for submerged operation
Suited for submerged operation
Corrosion-resistant material
Corrosion-resistant material
Suitable for automated use
Suitable for automated use

Downloads

User Manual

Further information

Description
1 pair of supports. Hardened and ground.
Installation
Directly on the Z=0 base of the WEDM center.
Operation
With manual control unit.
Mounting Interface
Support and clamping of the frame plate with weights of up to 30kg. Stabilizes the frame plate in case of high flushing pressure.
