Products Clamping Systems WEDM Square clamping unit UnoSet
ER-027641

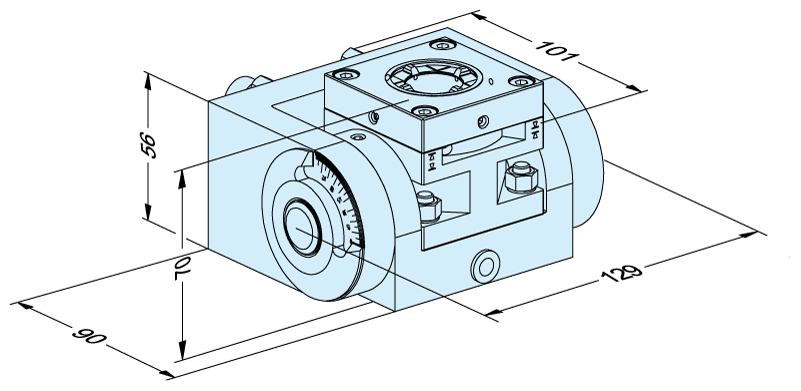

Square clamping unit UnoSet

CompactChuck M

Technical data

Technical data for Square clamping unit UnoSet
Indexing 4 x 90°
Repeatability < 0.002 mm
Technologies
EDM sinking
EDM sinking
WEDM
WEDM
Applications
Manual Operation
Manual Operation
With central flushing clearance
With central flushing clearance
Corrosion-resistant material
Corrosion-resistant material

Downloads

User Manual

Further information

Description
CompactChuck manual. Angle to be set with the vernier. Angled clamping unit made of corrosion-resistant steel.
Mounting Interface
WEDM or EDM.
Connections
Flushing connection in place.
