ER-038891

Prism holder ø 10 - 180

PalletSet W

Technical data

Technical data for Prism holder ø 10 - 180
Repeatability < 0.002 mm

Technology

Wire-EDM sinking
Wire-EDM sinking

Applications

Manual
Manual
Submerged
Submerged
INOX
INOX

Downloads

Further information

Description

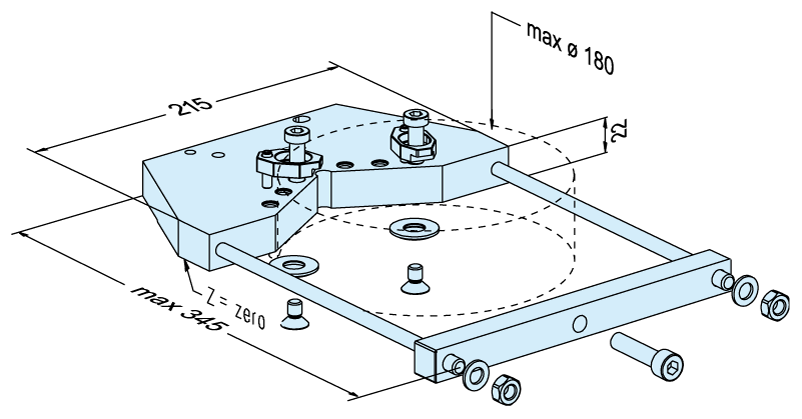

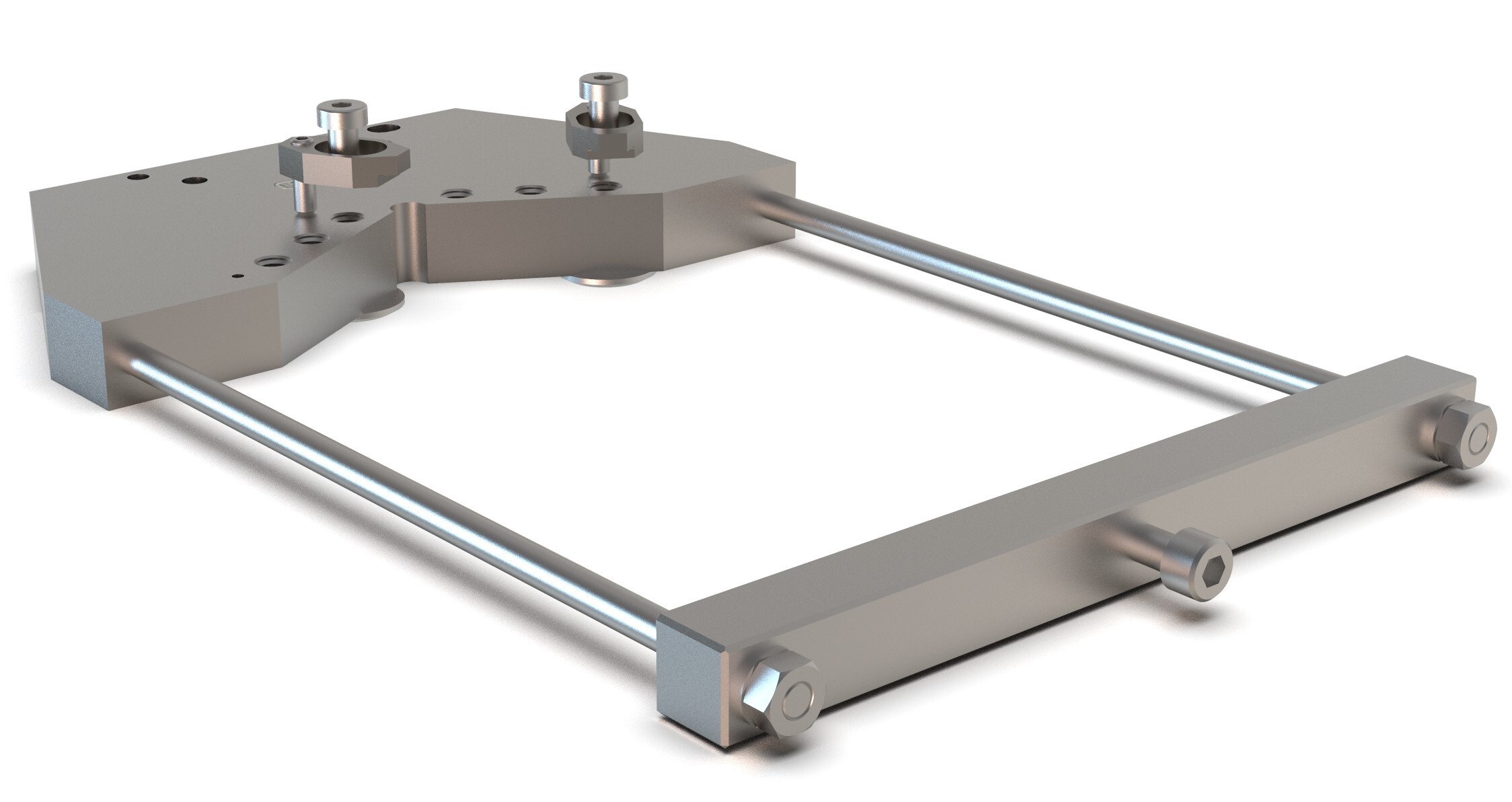

Prism and clamping bars with detachable
Z-supports.
Mounting Interface
To clamp cylindrical workpieces of up to
ø 180 mm.
Installation
directly to fixholder or pendulum holder.
Note
Max. load: 12 kg.
