ER-030645

UnoSet adapter PalletSet W

centering plate G

Technical data

Technical data for UnoSet adapter PalletSet W
Repeatability < 0.002 mm

Technology

Wire-EDM sinking
Wire-EDM sinking

Applications

Manual
Manual
Submerged
Submerged
INOX
INOX
Auto
Auto
Gripper RCS
Gripper RCS

Downloads

Further information

Description

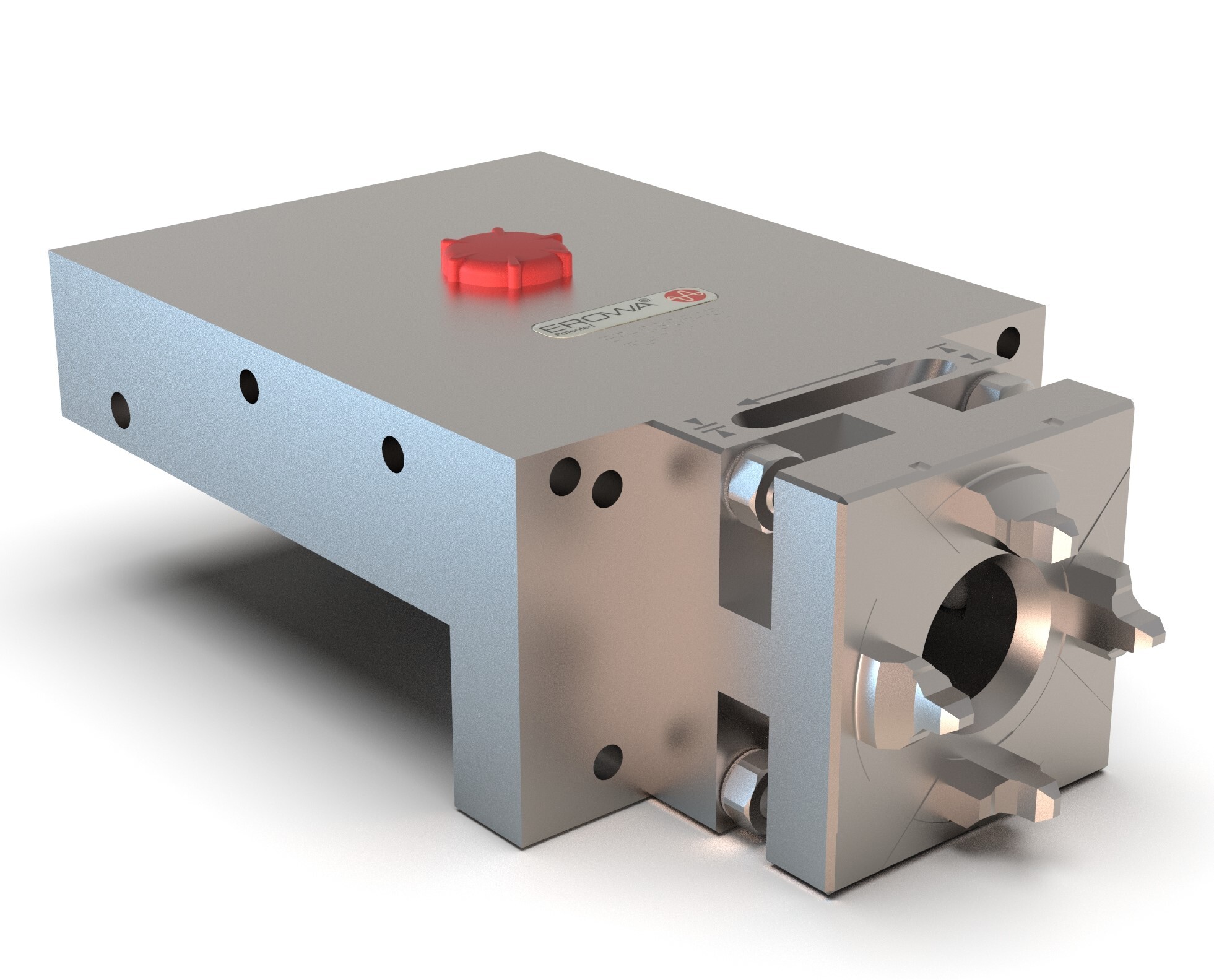

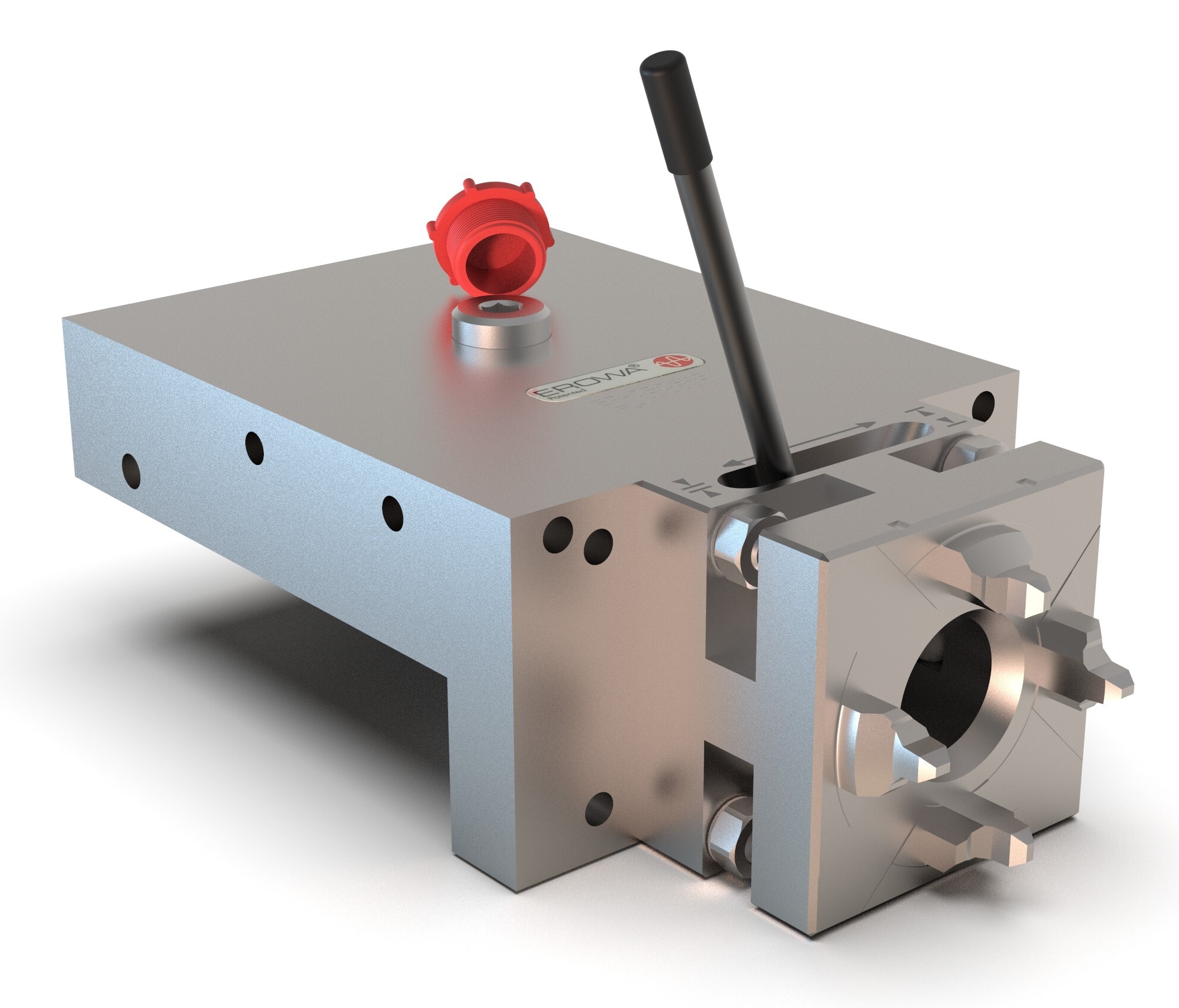

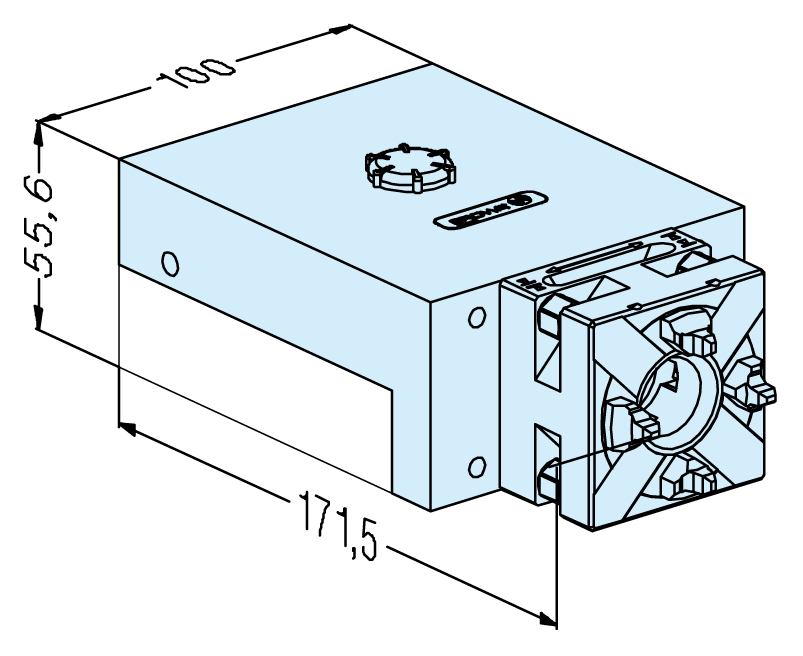

System adapter of PalletSet W to UnoSet.
Mounting Interface
Clamps workpieces of system size ITS 50 horizontally into the workspace.
Note
Fits all UnoSet and ITS 50 clamping elements.
