Products Clamping Systems WEDM Extension arm Z-Vario
ER-038711

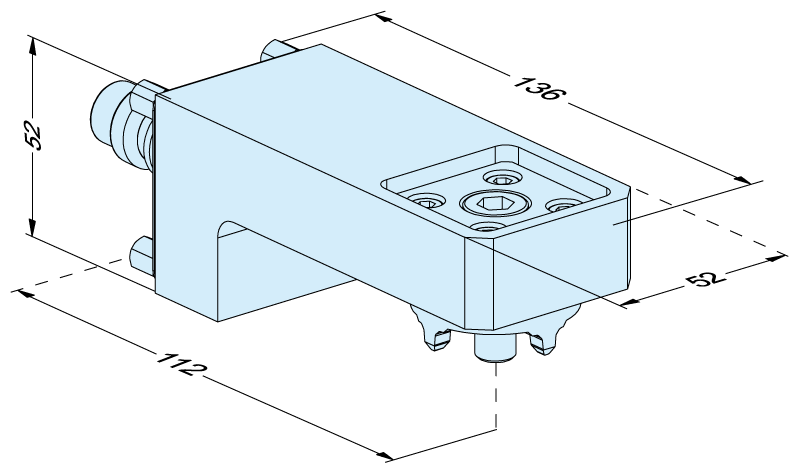

Extension arm Z-Vario

PalletSet W / UnoSet

Technical data

Technical data for Extension arm Z-Vario
Repeatability < 0.002 mm
Technologies
WEDM
WEDM
Applications
Manual Operation
Manual Operation
Corrosion-resistant material
Corrosion-resistant material

Downloads

User Manual

Further information

Description
Extension arm with centering system connection to ITS 50. Accommodates workpieces and electrodes.
Mounting Interface
Accommodation of workpieces and electrodes for machining in a horizontal or vertical position.
Max. Load Capacity
Max. 6 kg
Note
Can be used in combination with adapter Z-Vario PSW/UnoSet. Indexation around 4x90°.
