Products Clamping Systems WEDM Corner Bracket
ER-165950

Corner Bracket

ecoLine

Technical data

Technical data for Corner Bracket
Technologies
WEDM
WEDM
Applications
Manual Operation
Manual Operation
Suited for submerged operation
Suited for submerged operation
Corrosion-resistant material
Corrosion-resistant material

Further information

Mounting Interface
The bracket clamp can be used on the left or right side as well as frontally at 45°. The parts can be clamped outside the machine and then secured in the reference position of the machine using the stop strips (base strips). The clamping lips are in the zero position in the default setting.

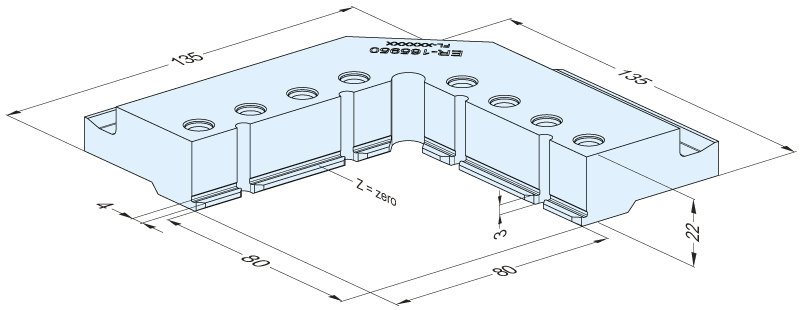

Dimension
Leg length 135 x 135 mm / height = 22 mm.
Scope of delivery
1 x bracket clamp.
