Products Clamping Systems VPC (Vise Power Clamp) VPC Chuck 96
ER-155774

VPC Chuck 96

with base plate 176 x 230 mm

Technical data

Technical data for VPC Chuck 96
Number of lines min. 2 (opening & reclamping) | Optional: + 1 (for cleaning and combined locking & presence check)
Operation With control unit or compressed air gun
Indexing 4 x 90°
Reclamping pressure 6 bar pneumatic
Reclamping Required
Opening pressure 6 bar pneumatic
Repeatability < 0.003 mm
Clamping power 18'000 N
Clamping mechanism Spring force, clamped without pressure
Pitch 96 mm
Workpiece size up to 160 x 160 x 160 mm

Technology

Chip removing
Chip removing

Applications

Manual
Manual
Compressed Air
Compressed Air
Manual Control Unit
Manual Control Unit
Electropneumatic Control Unit
Electropneumatic Control Unit
Auto
Auto

Downloads

Operating and installation instructions

Further information

Description

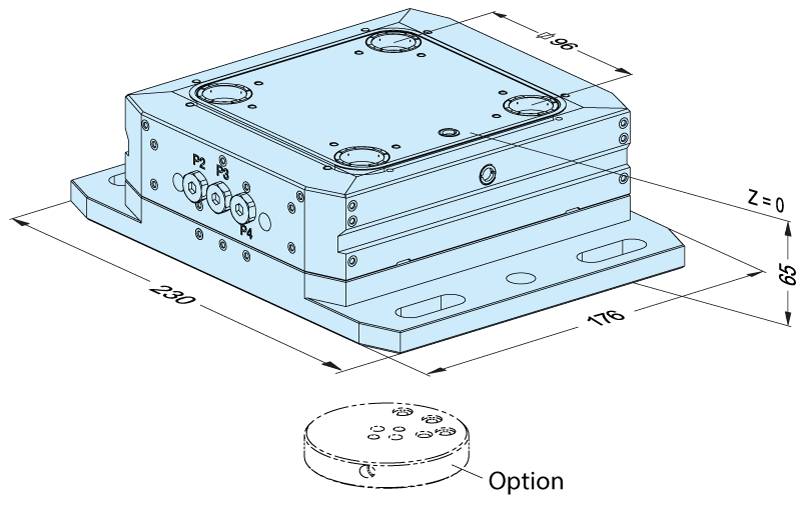

Automatable chuck with a 96 mm pitch. Including base plate L 176 x W 230 x H 65 mm.
Connections
Laterally and from below (option): for opening, reclamping and cleaning/presence check.
Mounting Interface
To accommodate workpiece holders, pallets and fixtures which have been prepared with a 96 mm pitch and VPC chucking spigots 96.
Installation
Mounting hole pattern for 50mm/M12 grid and for machine table with a T-slot distance of 50/63/80/100mm (bolts and T-nuts are not included in the package supplied).
Options
Chuck control possible from below with a suitable adapter (on request).
