ER-115305

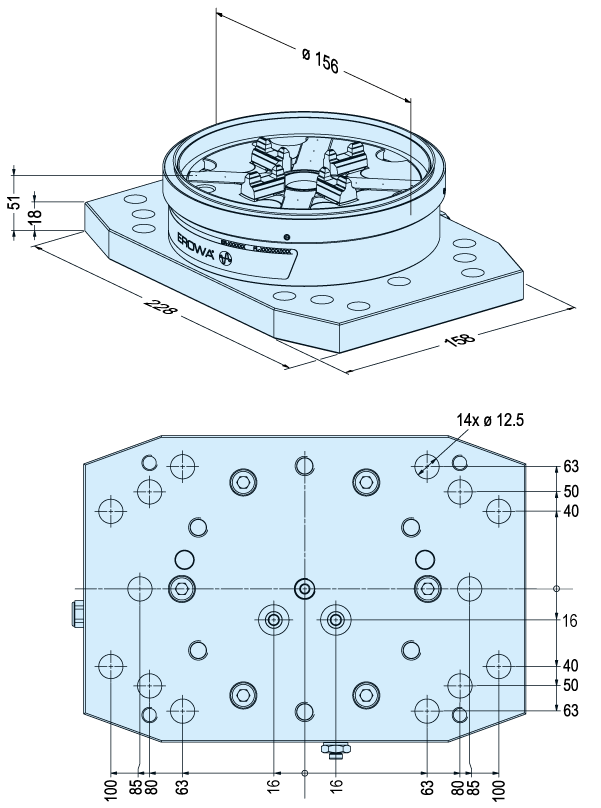

PowerChuck P 158 x 228
Technical data
| Operation | With control unit or compressed air gun |
|---|---|
| Indexing | 4 x 90° |
| Compatible pallets | ø 115 mm | ø 148 mm | ITS 50 | ITS 72 | PM 85 |
| Opening pressure | 6 bar pneumatic |
| Repeatability | < 0.002 mm |
| Chuck dimensions | ø 156 x 51 mm |
| Clamping power | 10´000 N |
| Clamping mechanism | Spring force, clamped without pressure |
| System height (chuck and pallet) | 91 mm |
| Workpiece size | up to 160 x 160 x 250 mm |
Technology
EDM Sinking
Chip removing
Applications
Compressed Air
Manual Control Unit
Electropneumatic Control Unit
Submerged
Auto
