Products Clamping Systems PCP (PowerChuck P) Manual 3-jaw concentric chuck ø 140 mm
ER-068697

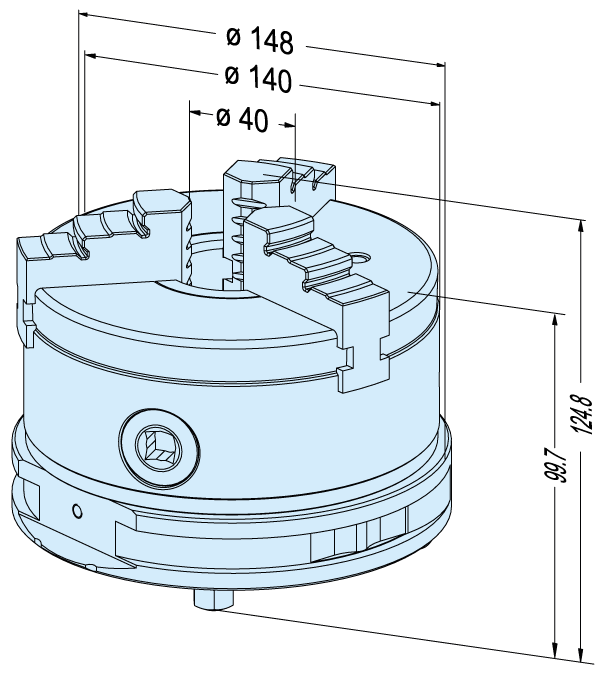

Manual 3-jaw concentric chuck ø 140 mm

on pallet ø 148 G

Technical data

Technical data for Manual 3-jaw concentric chuck ø 140 mm
Centering plate Fake machine translated

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Applications

Manual
Manual
Auto
Auto
Gripper 148
Gripper 148

Downloads

User Manual

Further information

Description
Manually operated three-jaw chuck ø140mm. Central clamping range 3-53mm. Body made of steel. High concentric accuracy according to DIN 6386. Fitted to pallet ø 148 G. Including 3 hardened drilling jaws (outward stepped), 3 hardened turning jaws (inward stepped) and 1 wrench.
Note
Max. speed 5,000 min-¹.
Mounting Interface
In combination with EROWA chucks on lathes, round tables, dividing heads, etc.
Spare Parts
Block jaws, soft, for three-jaw chuck, set of 3, size 140mm.
