Products Clamping Systems PCP (PowerChuck P) Pallet ø 148 G R25 ALU
ER-115712

Pallet ø 148 G R25 ALU

Technical data

Technical data for Pallet ø 148 G R25 ALU
Centering plate Fake machine translated
Technologies
EDM sinking
EDM sinking
Chip-removing processes
Chip-removing processes
Applications
Manual Operation
Manual Operation
Suitable for automated use
Suitable for automated use
Gripper 148
Gripper 148

Downloads

User Manual User Manual

Further information

Description

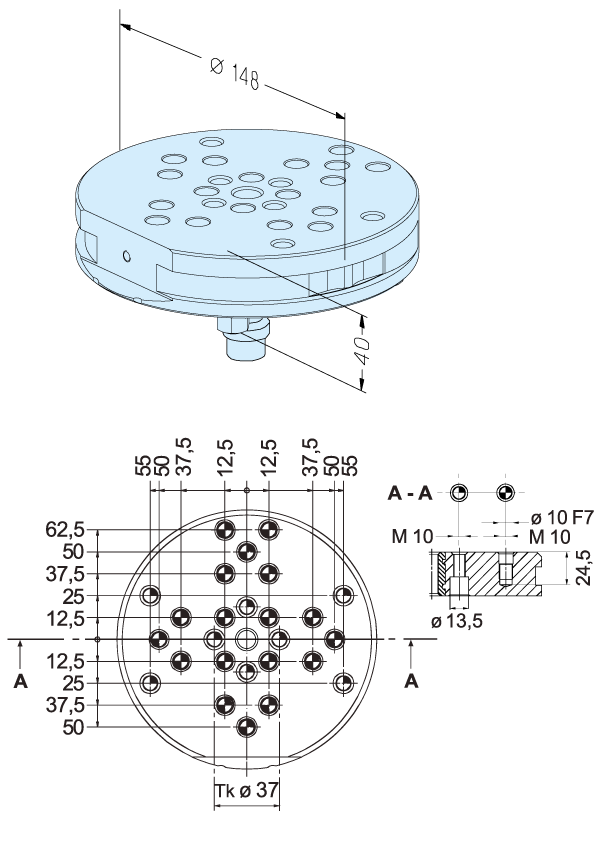

Aluminum pallet with hole pattern 25, ø10F7, M10 thread. With centering plate G (ground). With optimized center of mass.
Mounting Interface
To accommodate workpieces and electrodes. Construction of fixtures and ClampSet Base 220.
Mounting
Through the pallet with M8 bolts or through the blank with M10 bolts.
