ER-136056
PowerChuck P without base plate
for mounting in machine table
Technical data
| Operation | With control unit or compressed air gun |
|---|---|
| Indexing | 4 x 90° |
| Compatible pallets | ø 115 mm | ø 148 mm | ITS 50 | ITS 72 | PM 85 |
| Opening pressure | 6 bar pneumatic |
| Repeatability | < 0.002 mm |

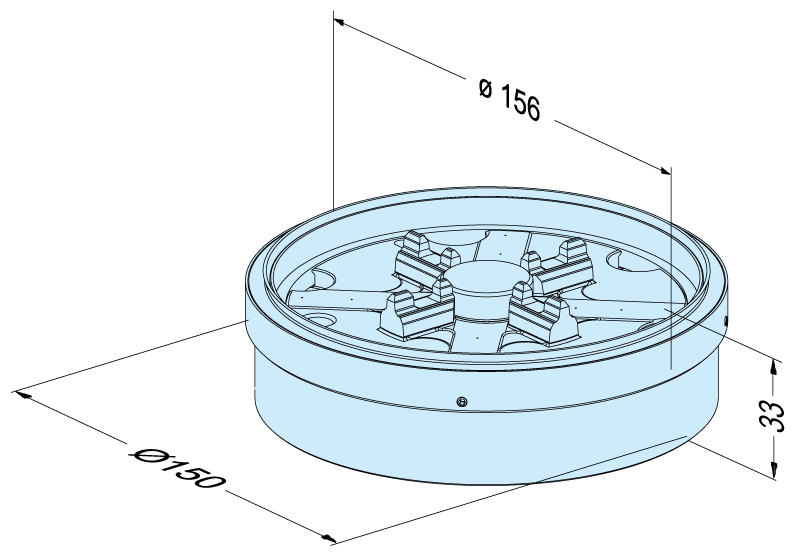

| Chuck dimensions | ø 156 x 33 mm |
| Clamping power | 10´000 N |
| Clamping mechanism | Spring force, clamped without pressure |
| System height (chuck and pallet) | 73 mm |
| Workpiece size | up to 160 x 160 x 250 mm |
| Technologies |
EDM sinking
Chip-removing processes
|
| Applications |
Operate using the manual control unit
Operate using the electropneumatic control unit
Suited for submerged operation
Suitable for automated use
|
