ER-115699

Alignment pallet ø 115 MS

Technical data

Technical data for Alignment pallet ø 115 MS
Centering plate Fake machine translated
Technologies
EDM sinking
EDM sinking
WEDM
WEDM
Chip-removing processes
Chip-removing processes
Applications
Corrosion-resistant material
Corrosion-resistant material
Gripper S
Gripper S
Gripper 115
Gripper 115

Downloads

Further information

Description

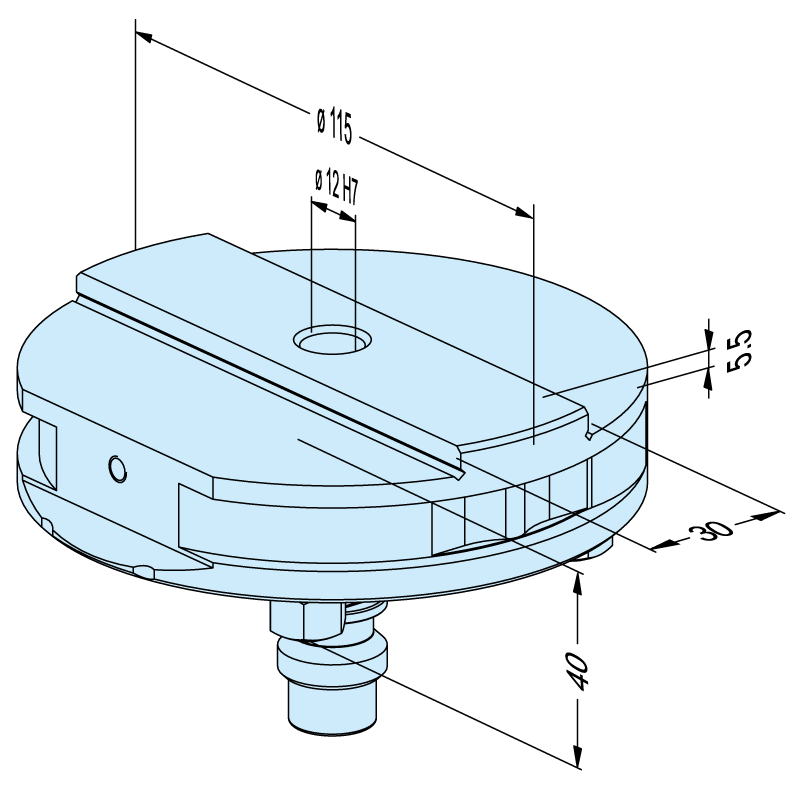

Pallet ø 115 mm, alignment length 110 mm, center borehole ø 12 mm.
Mounting Interface
Alignment of radial, axial and angular position of ITS chucks, PowerChuck P and PC 210 Combi chucks.
