Products Clamping Systems EDM Uniplate C
ER-093780

Uniplate C

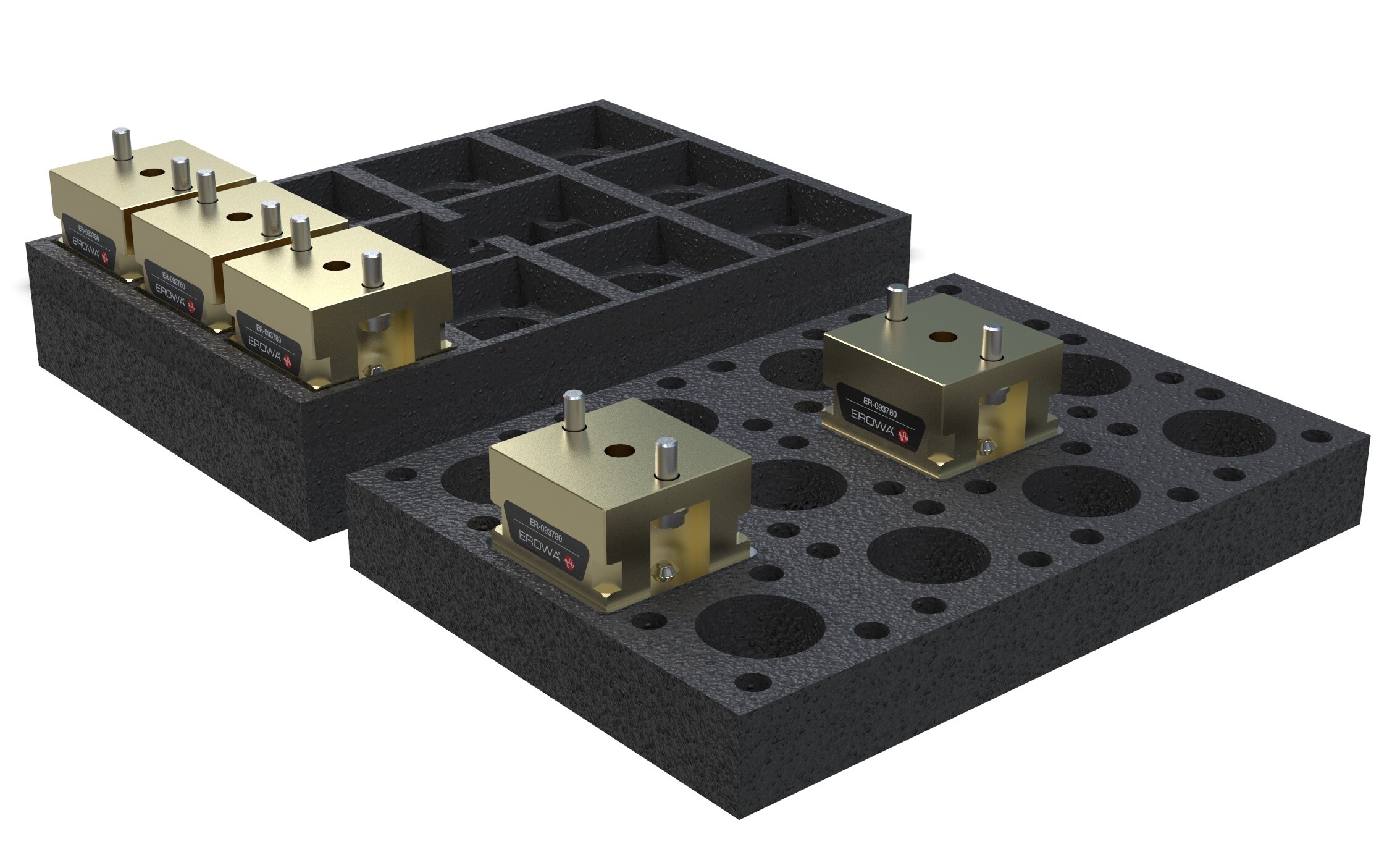

12 pieces

Technical data

Technical data for Uniplate C
Technologies
EDM sinking
EDM sinking
WEDM
WEDM
Chip-removing processes
Chip-removing processes
Applications
With central flushing clearance
With central flushing clearance
Corrosion-resistant material
Corrosion-resistant material
Suitable for automated use
Suitable for automated use
Gripper S
Gripper S
Gripper C
Gripper C
Shop now

Downloads

User Manual

Further information

Description

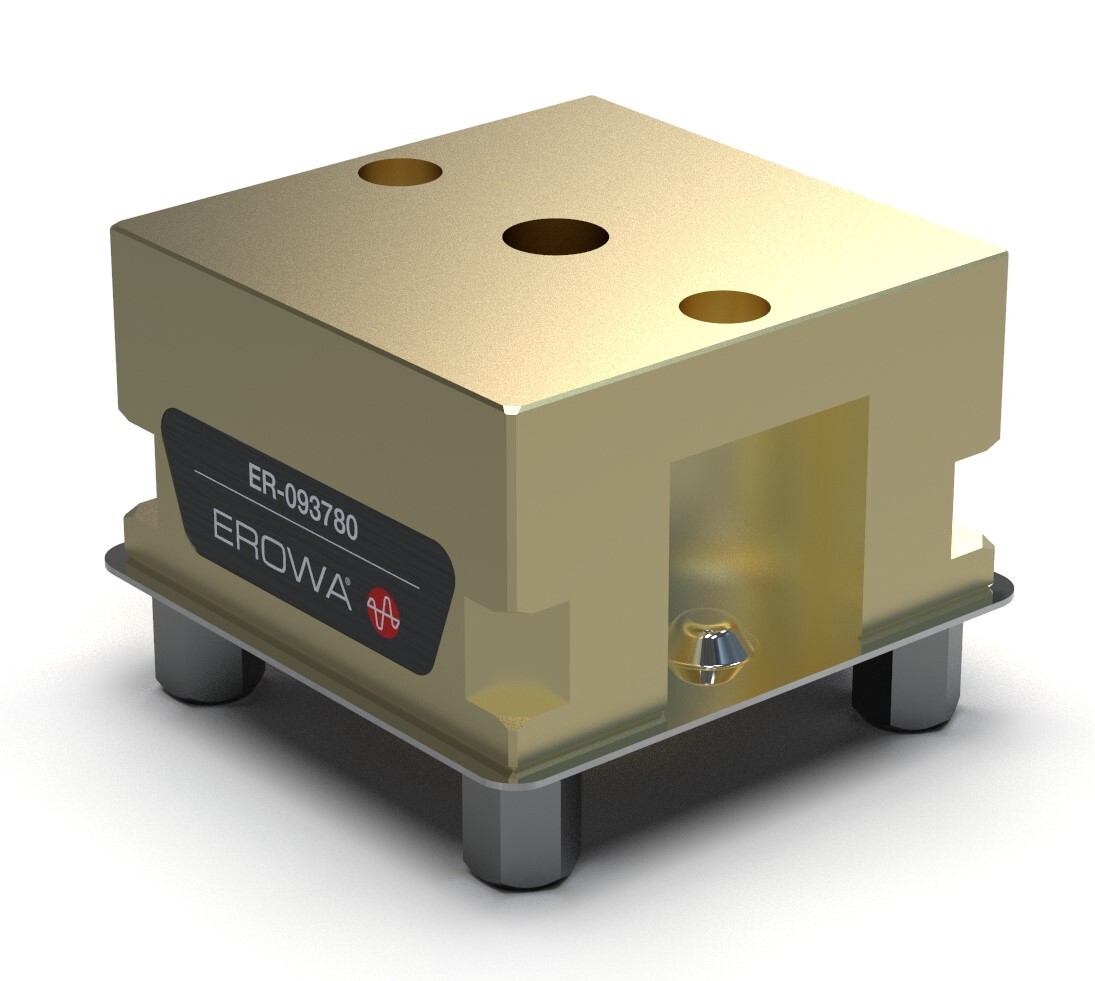

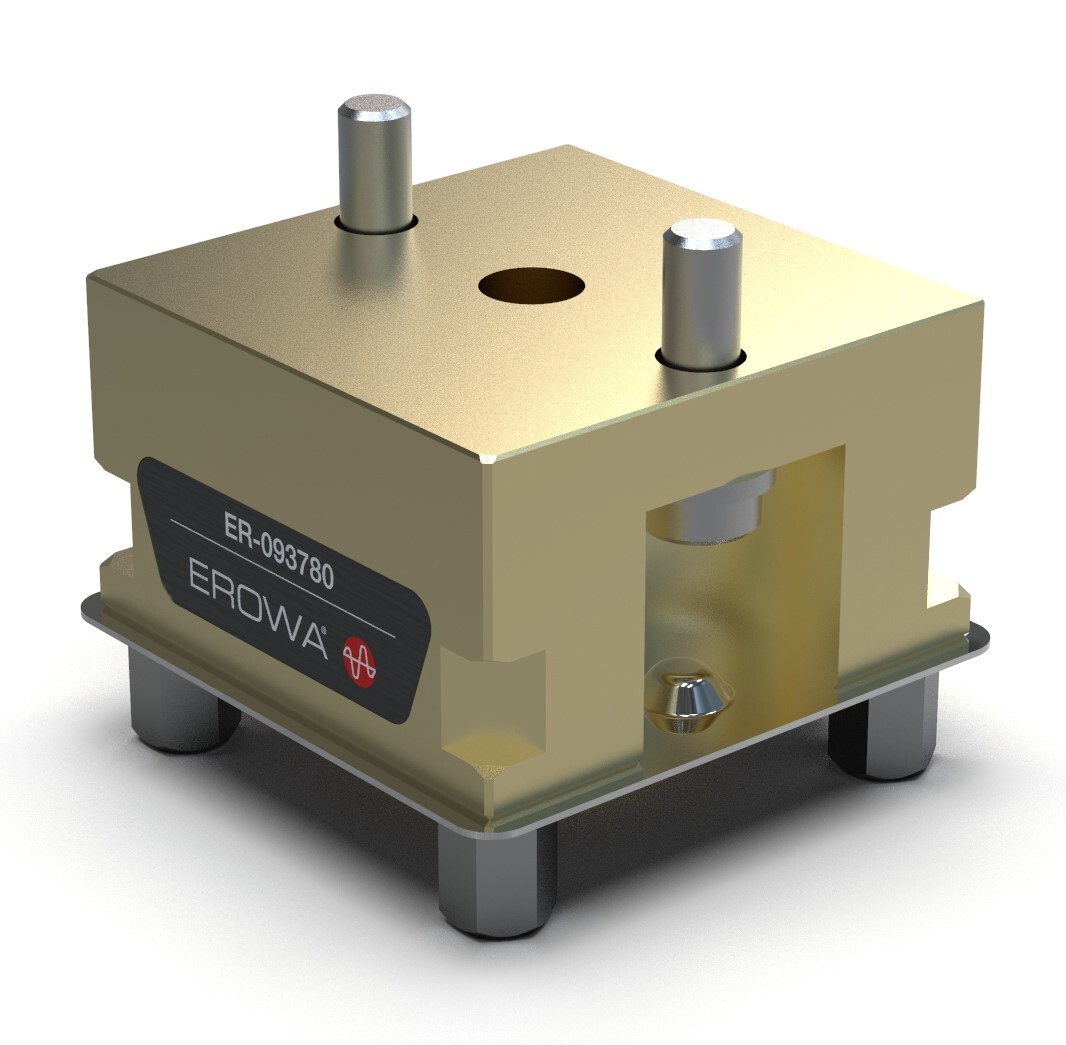

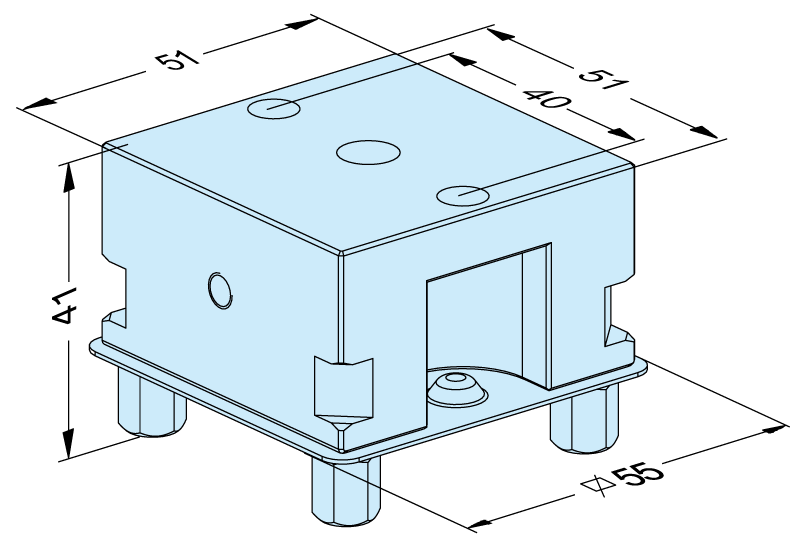

Brass holder ITS 50 with rear mounting option, gripper slots and sealing plate. Surface 51x51mm faced. Including 24xM6 bolts and washers.
Mounting Interface
To mount electrodes and workpieces with a base surface of more than 50mm.
Mounting
With 2 x M6 bolts.
Note
Order EWIS™ chip (ER-094168) and chucking spigots separately.
