ER-007521

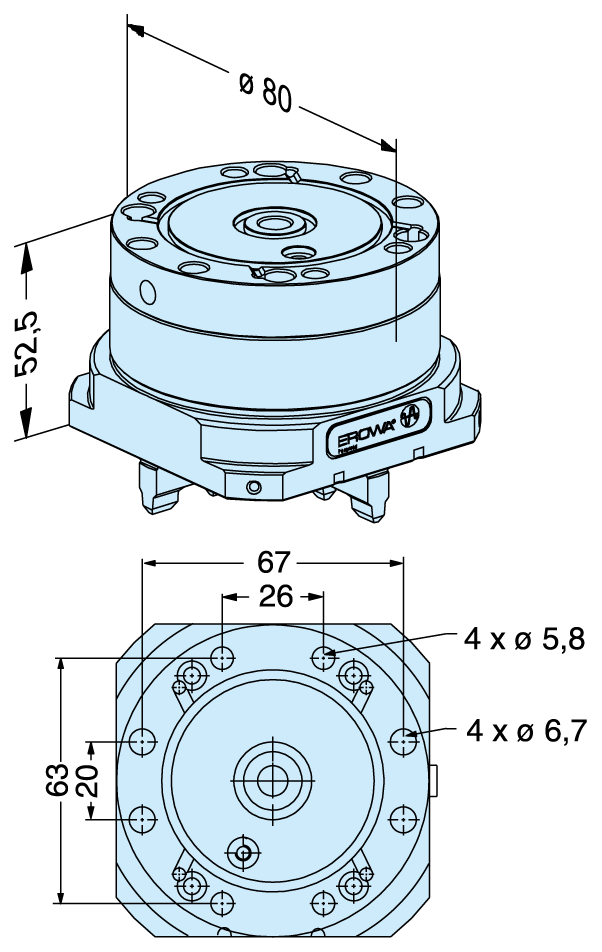

Rapid-action chuck automatic
Technical data
| Number of lines | min. 1 (opening) | Optional: + 1 (for reclamping) | Optional: + 1 (for cleaning and combined locking & presence check) |
|---|---|
| Operation | With control unit or compressed air gun |
| Indexing | 4 x 90° |
| Reclamping | Optional |
| Opening pressure | 6 bar pneumatic |
| Repeatability | < 0.002 mm |
| Workpiece size | up to 140 x 140 x 140 mm |
| Technologies |
EDM sinking
|
| Applications |
Operate using the manual control unit
Operate using the electropneumatic control unit
With central flushing clearance
Suitable for automated use
|
