ER-069153

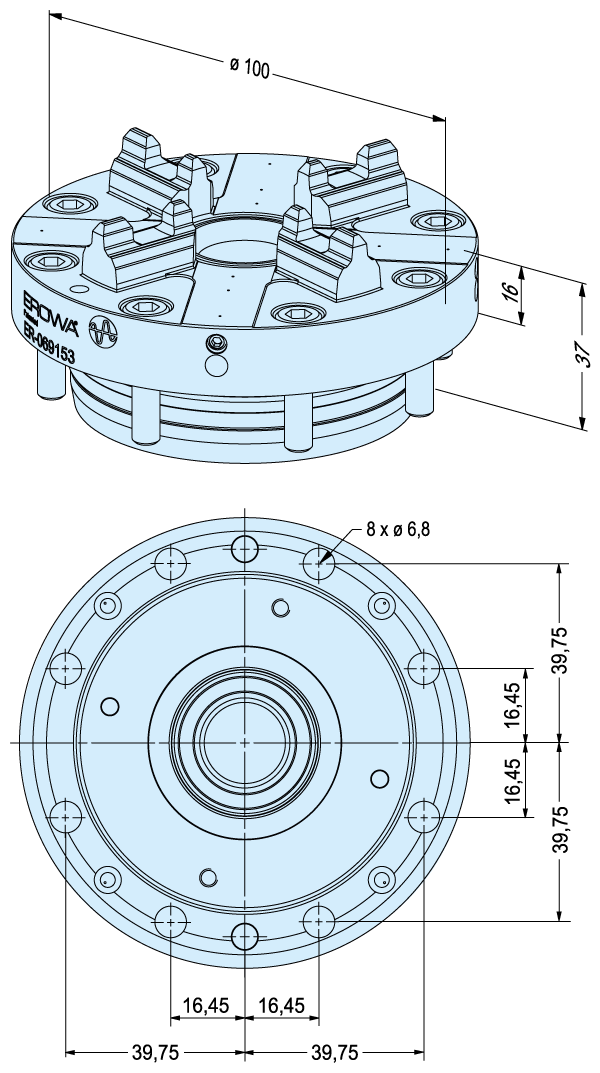

ITS Chuck 100 P Inox flat
height 16 mm
Technical data
| Number of lines | min. 1 (opening) | Optional: + 1 (for reclamping) | Optional: + 1 (for cleaning) |
|---|---|
| Operation | With control unit or compressed air gun |
| Indexing | 4 x 90° |
| Reclamping | Optional |
| Opening pressure | 6 bar pneumatic |
| Repeatability | < 0.002 mm |
| Workpiece size | up to 140 x 140 x 140 mm |
Technology
EDM Sinking
Chip removing
Applications
Manual Control Unit
Electropneumatic Control Unit
Auto
