Products Clamping Systems MTS (Modular Tooling System) MTS pallet 398 x 398 / 200 FD
ER-143875

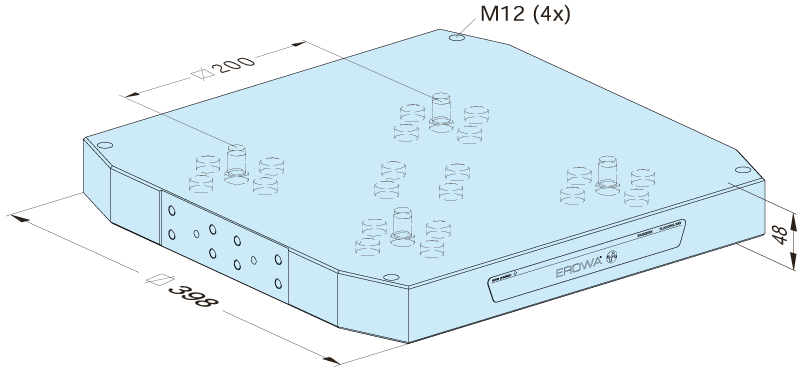

MTS pallet 398 x 398 / 200 FD

Z-support hard

Technical data

Technical data for MTS pallet 398 x 398 / 200 FD
Compatible chucks MTS | MTS 2.0 | MTS 3.0 | MTS 4.0 | MTS 81
Pitch 200 mm
Workpiece identification EWIS™ Rapid
Note Only compatible with MTS FD components, not with MTS standard components.
Technologies
Chip-removing processes
Chip-removing processes
Applications
Manual Operation
Manual Operation
Suitable for automated use
Suitable for automated use
Gripper RCS
Gripper RCS

Downloads

User Manual

Further information

Description
Aluminum pallet, 4-fold, pitch 200 mm. With hard Z supports. Excluding MTS chucking spigots FD.
Mounting Interface
To clamp workpieces, vises and gauges. Holes to be drilled as required.
Accessories
MTS chucking spigot set 4/ A-Z-FD Type 1 ER-171025, GripperLink RCS 45 mm ER-038622 and counter weight ER-146556.
Compatibility
MTS (up to max. 80 min⁻¹), MTS 2.0, MTS 3.0, MTS 4.0.
