Products Clamping Systems MTS (Modular Tooling System) MTS pallet 498 x 498 / 250
ER-136757

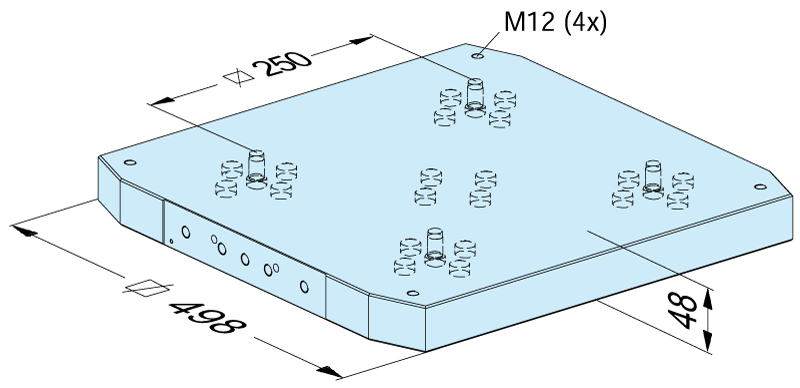

MTS pallet 498 x 498 / 250

Hard Z support / WGS-500 40 mm

Technical data

Technical data for MTS pallet 498 x 498 / 250
Compatible chucks MTS | MTS 2.0 | MTS 4.0 | MTS 81 | MTS Single Chuck
Pitch 250 mm
Workpiece weight up to 1'000 kg
Workpiece size up to 1'000 x 1'000 x 1'000 mm
Workpiece identification EWIS™ Rapid
Note Only compatible with MTS standard components, not with MTS FD components.
Technologies
EDM sinking
EDM sinking
Chip-removing processes
Chip-removing processes
Applications
Manual Operation
Manual Operation
Suitable for automated use
Suitable for automated use
Gripper WGS
Gripper WGS

Downloads

User Manual

Further information

Description
Aluminum pallet, 4-fold, pitch 250mm. With hard Z-supports. Excluding chucking spigots.
Mounting Interface
To clamp workpieces, vises and gauges. Hole grid to be drilled according to requirements.
Accessories
MTS chucking spigot set ER-041461 (M) or ER-041464 (A), as well as GripperLink WGS-500 40mm, ER-094828.
