ER-148426

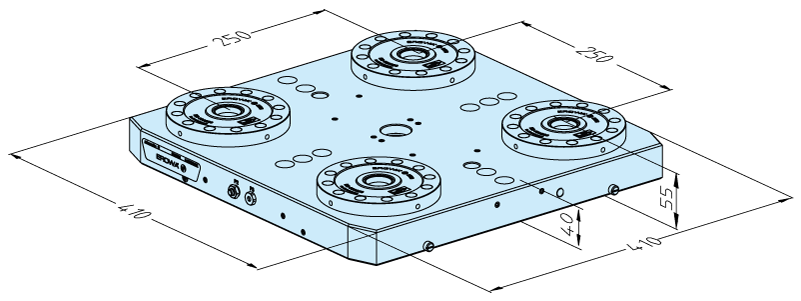

MTS base plate 410 x 410 P
Universal, pitch 250
Technical data
| Number of lines | min. 1 (opening) |
|---|---|
| Operation | Compressed air gun | Manual control unit |
| Holding force | min. 60'000 N/ IntegralChuck |
| Indexing | 4 x 90° |
| Opening pressure | 7 bar pneumatic |
| Repeatability | < 0.003 mm |
| Clamping power | 48'000 N (4 x 12’000 N) |
| Clamping mechanism | Spring force, clamped without pressure |
| Pitch | 250 mm |
| Workpiece weight | up to 1'000 kg |
| Workpiece size | up to 1'000 x 1'000 x 1'000 mm |
Technology
EDM Sinking
Chip removing
Applications
Manual
Compressed Air
Submerged
