ER-061558

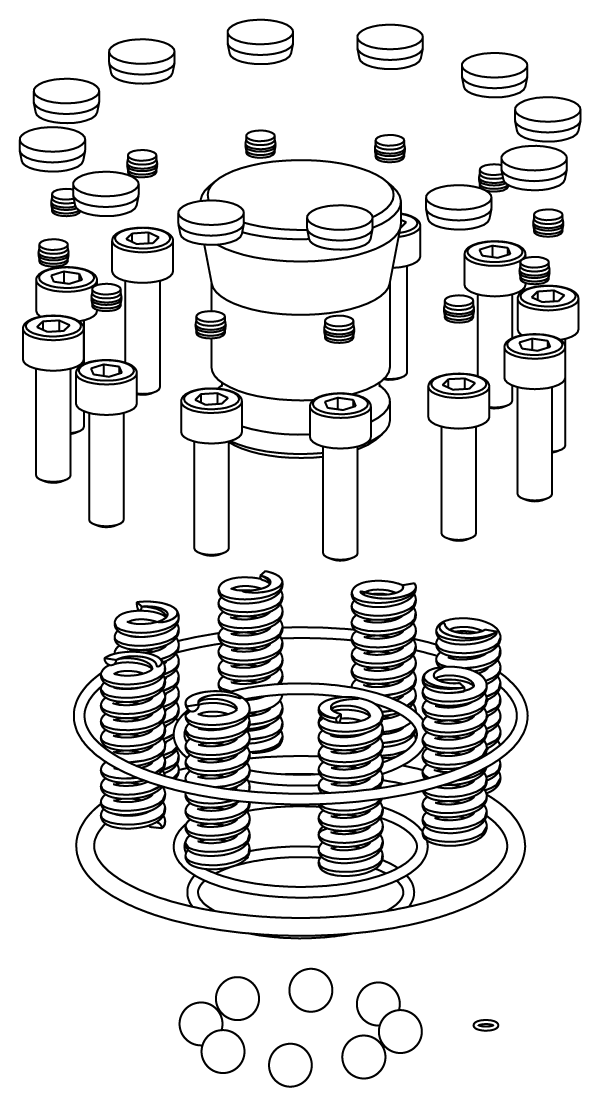

MTS 81 Repair Kit
Technical data
| Number of lines | min. 2 (opening & reclamping) | Optional: + 1 (for cleaning and combined locking & presence check) |
|---|---|
| Operation | With control unit or compressed air gun |
| Holding force | min. 60'000 N/ IntegralChuck |
| Indexing | 4 x 90° |
| Reclamping pressure | 8.5 bar pneumatic |
| Reclamping | Required |
| Opening pressure | 8.5 bar pneumatic |
| Repeatability | < 0.003 mm |
| Clamping power reclamped | 10’000 N |
| Clamping mechanism | Spring force, clamped without pressure |
| Technologies |
Chip-removing processes
|
