MTS Alignment pallet 398 x 398 / 250

Technical data

Technical data for MTS Alignment pallet 398 x 398 / 250
Compatible chucks MTS | MTS 2.0 | MTS 4.0 | MTS 81 | MTS Single Chuck
Workpiece weight up to 1'000 kg
Workpiece size up to 1'000 x 1'000 x 1'000 mm
Workpiece identification EWIS™ Rapid
Note Only compatible with MTS standard components, not with MTS FD components.
Technologies
EDM sinking
EDM sinking
Chip-removing processes
Chip-removing processes
Applications
Manual Operation
Manual Operation
Suitable for automated use
Suitable for automated use
Gripper RCS
Gripper RCS

Downloads

User Manual

Further information

Description

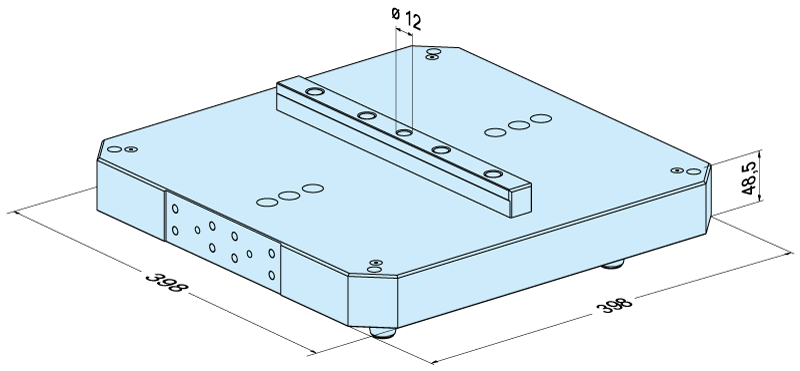

Aluminumm pallet, 4-fold, Z-support hard. With ground alignment rail and four Z-measuring surfaces, including MTS chucking spigot set 4 / A-Z.
Mounting Interface
Alignment of the angle position and determination of the center and the Z-values of 4-fold MTS base plates with a set-up distance of 250mm.
