ER-100143

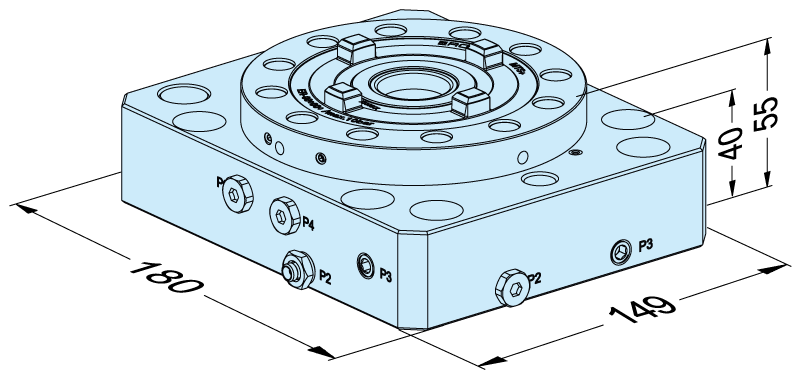

MTS 2.0 Base plate 149 x 180 S-P
1-fold
Technical data
| Number of lines | min. 1 (opening) | Optional: + 1 (for reclamping) | Optional: + 1 (for open control) |
|---|---|
| Operation | Compressed air gun | Manual control unit |
| Holding force | min. 60'000 N/ IntegralChuck |
| Reclamping pressure | 6 bar pneumatic |
| Reclamping | Optional |
| Opening pressure | 6 bar pneumatic |
| Repeatability | < 0.003 mm |
| Clamping power | 9’000 N |
| Clamping power reclamped | 20’000 N |
| Clamping mechanism | Spring force, clamped without pressure |
| Workpiece weight | up to 1'000 kg |
| Workpiece size | up to 1'000 x 1'000 x 1'000 mm |
Technology
EDM Sinking
Chip removing
Applications
Manual
Compressed Air
Manual Control Unit
Submerged
INOX
