ER-157207

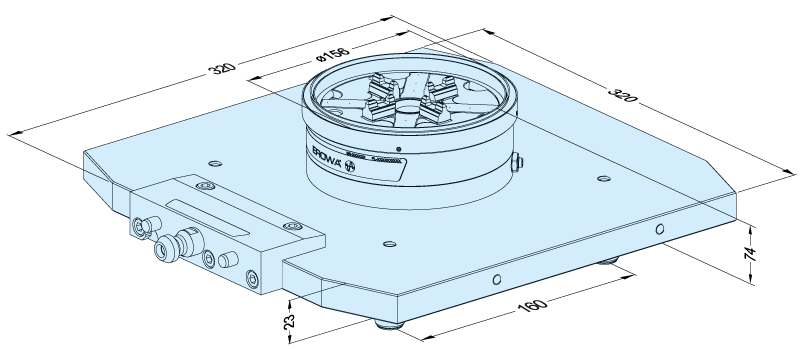

MTS Adapter pallet PCP automatic
320 x 320 / 160
Technical data
| Compatible chucks | MTS | MTS 2.0 | MTS 4.0 | MTS 81 | MTS Single Chuck |
|---|---|
| Pitch | 160 mm |
| Workpiece weight | up to 1'000 kg |
| Workpiece size | up to 1'000 x 1'000 x 1'000 mm |
| Workpiece identification | EWIS™ Rapid |
| Note | Only compatible with MTS standard components, not with MTS FD components. |
| Technologies |
EDM sinking
Chip-removing processes
|
| Applications |
Operate with compressed air jet
Operate using the electropneumatic control unit
Suited for submerged operation
Suitable for automated use
Gripper RCS
|
