ER-096901

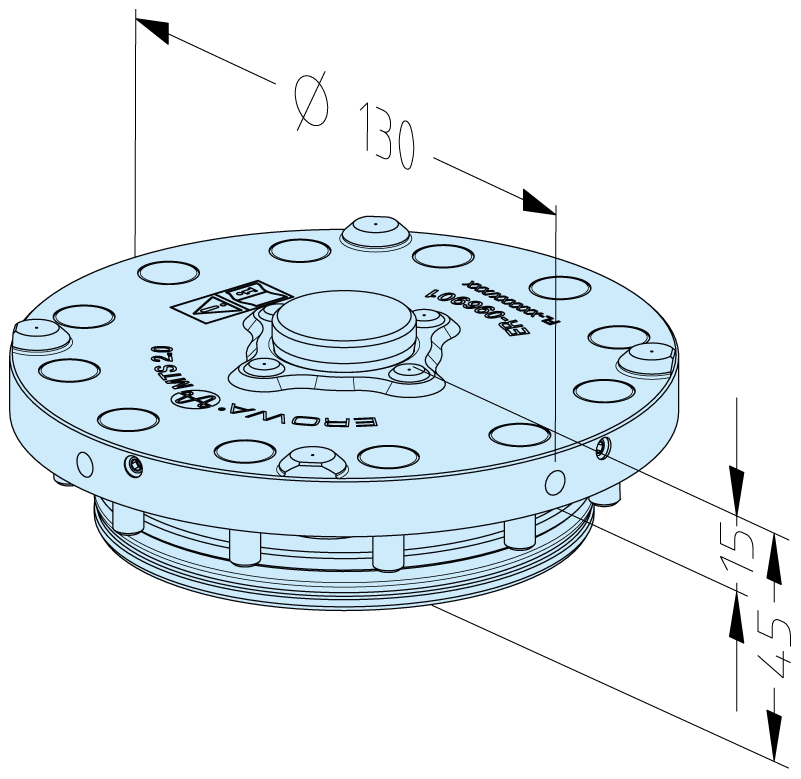

MTS 2.0 IntegralChuck M-P/A
Technical data
| Number of lines | min. 1 (opening) | Optional: + 1 (for reclamping) | Optional: + 1 (for open control) | Optional: + 1 (for cleaning and combined locking & presence check) |
|---|---|
| Operation | Manual Control Box | Automatic control unit | Machining center |
| Holding force | min. 60'000 N/ IntegralChuck |
| Reclamping pressure | 6 bar pneumatic |
| Reclamping | Optional |
| Opening pressure | 6 bar pneumatic |
| Repeatability | < 0.003 mm |
| Clamping power | 9’000 N |
| Clamping power reclamped | 20’000 N |
| Clamping mechanism | Spring force, clamped without pressure |
| Workpiece weight | up to 1'000 kg |
| Workpiece size | up to 1'000 x 1'000 x 1'000 mm |
| Technologies |
EDM sinking
Chip-removing processes
|
| Applications |
Operate using the manual control unit
Operate using the electropneumatic control unit
Suited for submerged operation
Corrosion-resistant material
Suitable for automated use
|
