ER-133896

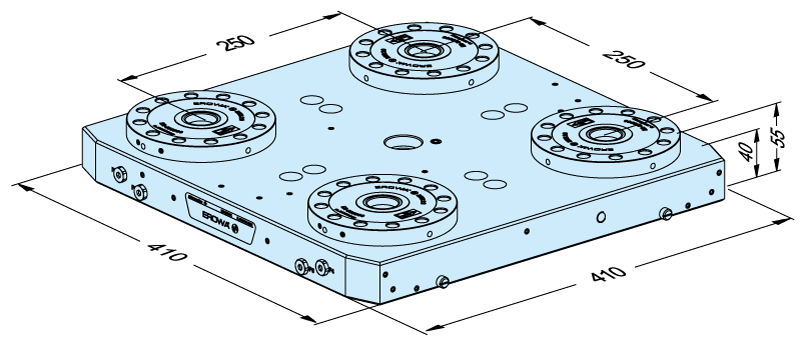

MTS 2.0 base plate 410 x 410 P
Universal, pitch 250
Technical data
| Number of lines | min. 1 (opening) | Optional: + 1 (for reclamping) | Optional: + 1 (for open control) |
|---|---|
| Operation | Manual control unit |
| Holding force | min. 60'000 N/ IntegralChuck |
| Indexing | 4 x 90° |
| Reclamping pressure | 6 bar pneumatic |
| Reclamping | Optional |
| Opening pressure | 6 bar pneumatic |
| Repeatability | < 0.003 mm |
| Clamping power | 36’000 N (4 x 9’000 N) |
| Clamping power reclamped | 80’000 N (4 x 20’000 N) |
| Clamping mechanism | Spring force, clamped without pressure |
| Pitch | 250 mm |
| Workpiece weight | up to 1'000 kg |
| Workpiece size | up to 1'000 x 1'000 x 1'000 mm |
Technology
EDM Sinking
Chip removing
Applications
Manual
Manual Control Unit
Submerged
INOX
