Products Clamping Systems MTS (Modular Tooling System) MTS pallet ø 148 P
ER-129663

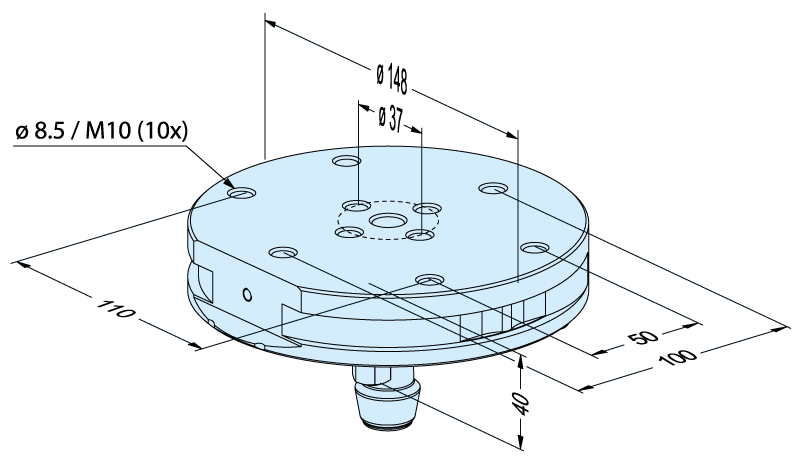

MTS pallet ø 148 P

Technical data

Technical data for MTS pallet ø 148 P
Compatible chucks MTS | MTS 2.0 | MTS 4.0 | MTS 81 | MTS Single Chuck
Workpiece weight up to 1'000 kg
Workpiece size up to 1'000 x 1'000 x 1'000 mm
Workpiece identification EWIS™ Rapid
Note Only compatible with MTS standard components, not with MTS FD components.
Technologies
EDM sinking
EDM sinking
Chip-removing processes
Chip-removing processes
Applications
Manual Operation
Manual Operation
Suitable for automated use
Suitable for automated use
Gripper 148
Gripper 148

Downloads

User Manual

Further information

Description
Steel pallet, not hardened, including MTS chucking spigot P ER-040999, centering integrated in pallet. With optimized centre of gravity.
Mounting Interface
For holding workpieces and fixtures in the field of metal-cutting production.
Mounting
Through the pallet with M8 bolts or through the blank with M10 bolts.
Note
In automatic operation, also use MTS sealing ring ER-045969.
