ER-033502

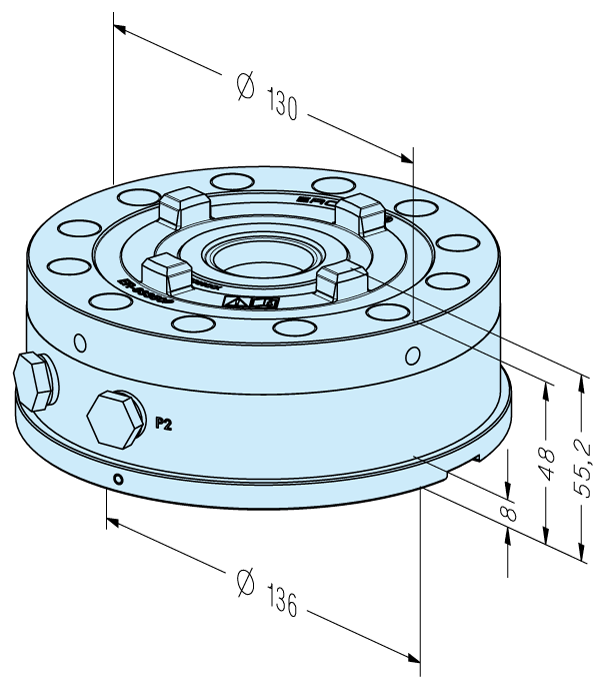

MTS Chuck S-P
Technical data
| Number of lines | min. 1 (opening) | Optional: + 1 (for cleaning and combined locking & presence check) |
|---|---|
| Operation | Compressed air gun | Manual Control Box | Automatic control unit | Machining center |
| Holding force | min. 60'000 N/ IntegralChuck |
| Opening pressure | 7 bar pneumatic |
| Repeatability | < 0.003 mm |
| Clamping power | 12’000 N |
| Clamping mechanism | Spring force, clamped without pressure |
| Workpiece weight | up to 1'000 kg |
| Workpiece size | up to 1'000 x 1'000 x 1'000 mm |
| Technologies |
EDM sinking
Chip-removing processes
|
| Applications |
Manual Operation
Operate using the manual control unit
Suited for submerged operation
|
