Products Clamping Systems MTS (Modular Tooling System) MTS pallet 398 x 398 / 250
ER-136578

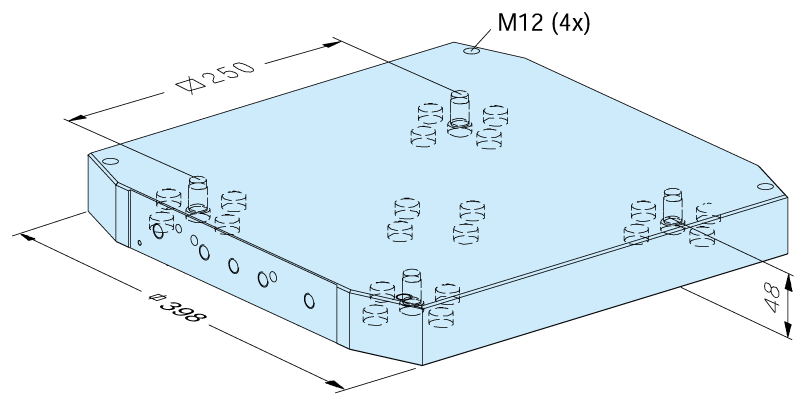

MTS pallet 398 x 398 / 250

Hard Z support / WGS-500 40 mm

Technical data

Technical data for MTS pallet 398 x 398 / 250
Compatible chucks MTS | MTS 2.0 | MTS 4.0 | MTS 81 | MTS Single Chuck
Pitch 250 mm
Workpiece weight up to 1'000 kg
Workpiece size up to 1'000 x 1'000 x 1'000 mm
Workpiece identification EWIS™ Rapid
Note Only compatible with MTS standard components, not with MTS FD components.

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Applications

Manual
Manual
Auto
Auto
Gripper WGS
Gripper WGS

Downloads

User Manual

Further information

Description
Aluminum pallet, 4-fold, pitch 250mm. With hard Z-supports. Excluding chucking spigots.
Mounting Interface
To clamp workpieces, vises and gauges. Hole grid to be drilled according to requirements.
Accessories
MTS chucking spigot set ER-041465 (M) or ER-041464 (A), as well as GripperLink WGS-500 40mm, ER-094828.
