Products Clamping Systems MTS (Modular Tooling System) MTS 3.0 base plate 410 x 410 P/A
ER-143859

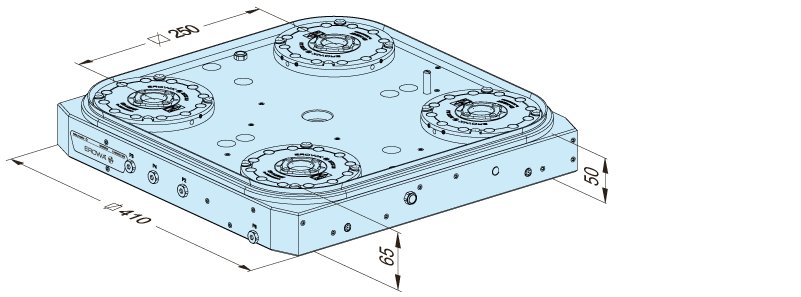

MTS 3.0 base plate 410 x 410 P/A

universal, Pitch 250

Technical data

Technical data for MTS 3.0 base plate 410 x 410 P/A
Number of lines min. 3 (opening and combined locking- & chucking spigot presence check) | Optional: + 1 (for open control) | Optional: + 1 (for cleaning)
Operation Machining center
Holding force min. 90'000 N/ IntegralChuck
Indexing No support
Reclamping pressure 6 bar pneumatic
Reclamping Required
Opening pressure 6 bar pneumatic
Repeatability < 0.003 mm
Clamping power reclamped 80’000 N (4 x 20’000 N)
Clamping mechanism Spring force, clamped without pressure
Pitch 250 mm
Technologies
Chip-removing processes
Chip-removing processes
Applications
Corrosion-resistant material
Corrosion-resistant material
Suitable for automated use
Suitable for automated use

Downloads

Operating manual EROWA Chuck MTS 3.0

Further information

Description
Base plate universal, steel unhardened, pitch 250mm. Including adapter flange with air boreholes.
Connections
4 pneumatic connections, laterally and from underneath on PC* ø57mm: for opening, reclamping, open check and for cleaning/presence check.
Options
Customized adapter flange available on request.
Mounting Interface
To accommodate multiple pallets. For direct assembly on machine tables.
Installation
Mounting hole pattern for grid 50mm/M12 and for machine tables with T-slot distances of 63 and 100mm.
