ER-139500

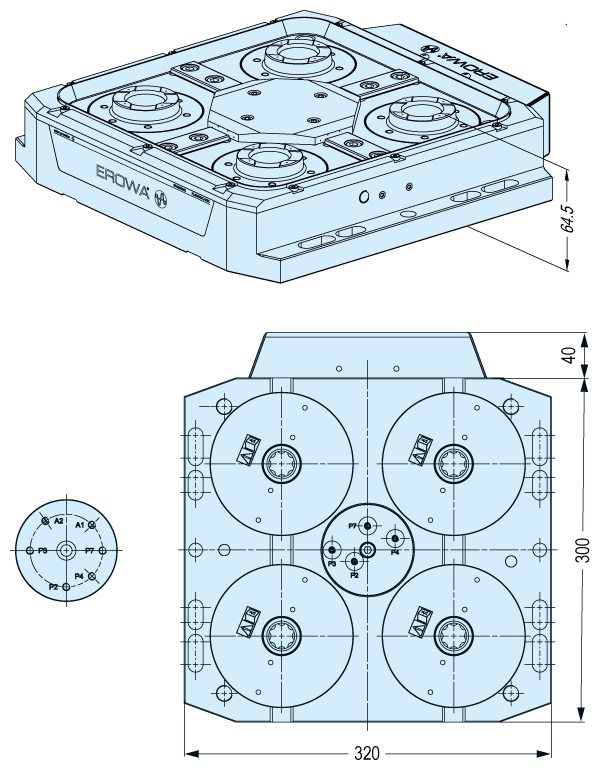

UPC 2.0 chuck 320 x 300
Technical data
| Operation | With manual or automatic control unit |
|---|---|
| Indexing | 4 x 90° |
| Reclamping pressure | 3 bar pneumatic |
| Reclamping | Optional |
| Opening pressure | 6 bar pneumatic |
| Repeatability | < 0.002 mm |
| Chuck dimensions | 320 x 300 mm |
| Clamping power | 50'000 N |
| Clamping power reclamped | 80'000 N |
| Clamping mechanism | Spring force, clamped without pressure |
| System height (chuck and pallet) | 105 mm |
| Workpiece size | up to 500 x 500 x 500 mm |
Technology
EDM Sinking
Chip removing
Applications
Manual Control Unit
Electropneumatic Control Unit
Submerged
Auto
