ER-099282

Linear Slide Multi Stamp

CleverClamp

Technical data

Technical data for Linear Slide Multi Stamp
Optional accessories Clamping jaws in various designs | Underlays at different heights

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Downloads

User Manual

Further information

Description

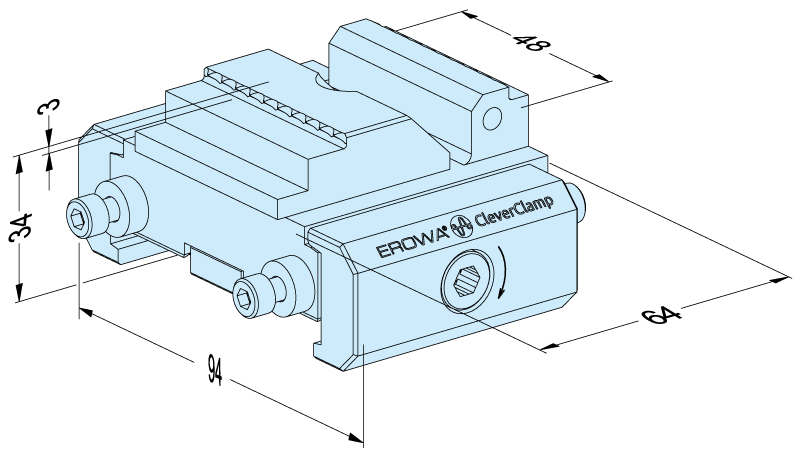

Steel, hardened, width 48mm, height 34mm, clamping and stop sides with stamp contours
Mounting Interface
Ideal for clamping blanks at the minimum clamping height of 3mm. Secure grip thanks to stamp technology for direct stamping. Can also be used for two-side machining.
Installation
On CleverClamp rail.
Note
Modularly compatible with all linear jaws. Suitable for single and mutliple fixtures.
Clamping Force
Up to 16kN max. with a torque of 40Nm max.
Clamping Stroke
Up to 5mm.
