Linear Slide Multi Flat

CleverClamp

Technical data

Technical data for Linear Slide Multi Flat
Optional accessories	Clamping jaws in various designs \| Underlays at different heights

Technology

Downloads

User Manual

Further information

Description

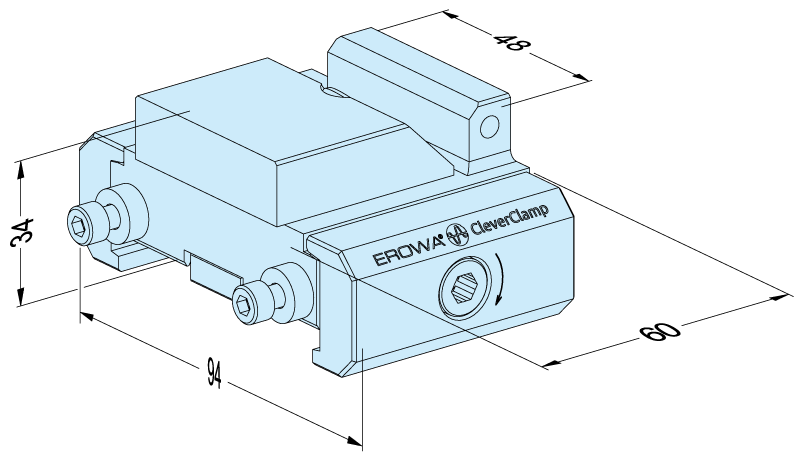

Steel, hardened, width 48mm, height 34mm, clamping and stop sides smooth.

Mounting Interface

For the linear clamping of workpieces with machined surfaces.

Installation

On CleverClamp rail.

Note

Modularly compatible with all linear jaws. Suitable for single and multiple fixtures.

Clamping Force

Up to 16kN max. with a torque of 40Nm max.

Clamping Stroke

Up to 5mm.
