ER-099275

Linear Slide 5X Stamp Wide

CleverClamp

Technical data

Technical data for Linear Slide 5X Stamp Wide
Optional accessories Clamping jaws in various designs | Underlays at different heights

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Downloads

User Manual

Further information

Description

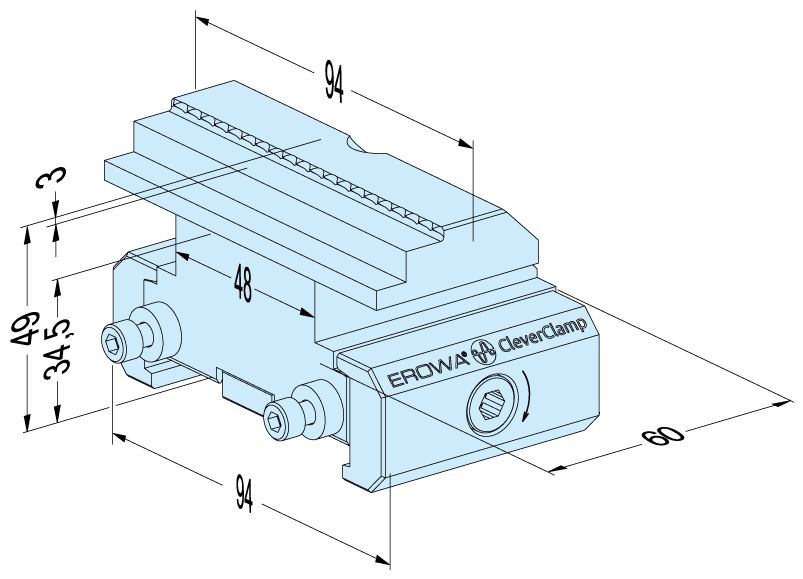

Steel, hardened, width 94mm, height 49mm, clamping side with stamp contours.
Mounting Interface
Optimised machine spindle accessibility for 5-axis applications. Ideal for clamping blanks at a minimum clamping height of 3mm. Secure grip thanks to stamp technology for direct stamping.
Installation
On CleverClamp rail.
Note
Modularly compatible with all linear jaws. Can be used for single and multiple fixtures.
Clamping Force
Up to 16kN max. with a torque of 40Nm max.
Clamping Stroke
Up to 5mm.
