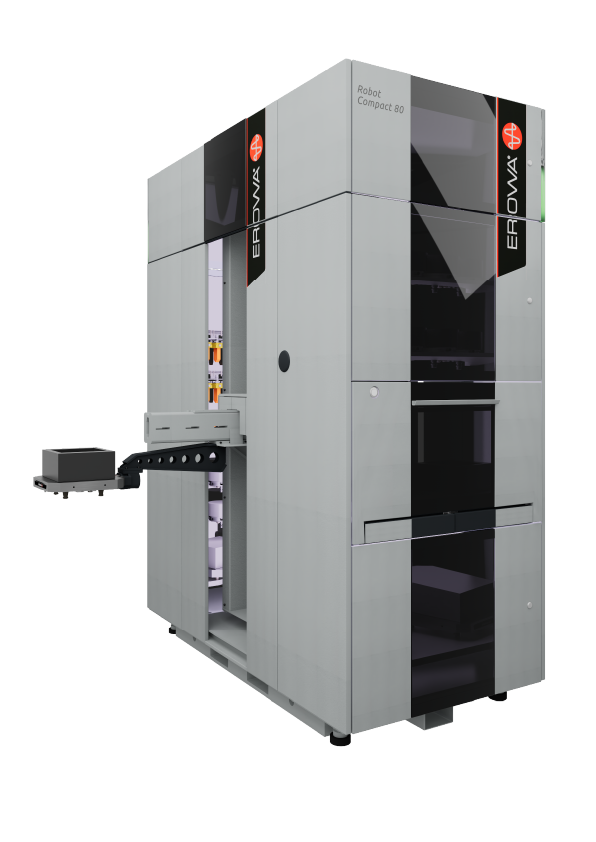

EROWA Robot Compact 80

Technical data

Technical data for EROWA Robot Compact 80
Automatic gripper change	Yes
Robot footprint	1065 x 2010 mm
Robot height	2630 mm
Max. number of machines	2
Max. transfer weight	80 kg
Max. workpiece size (incl. pallet)	320 x 320 x 300 mm

Technology

Applications

Downloads

EROWA Robot Compact 80 Brochure DE EROWA Robot Compact 80 EN Brochure EROWA Robot Compact 80 FR Brochure EROWA Robot Compact 80 IT Brochure

Further information

Mounting Interface

For milling, sinker, and wire EDM processes, as well as measurement applications. Suitable for single- and dual-machine solutions.

Operational flexibility

Mixed operation of different pallet types and flexible combination of workpiece and electrode handling.

Workpiece Identification

Automatic workpiece identification (EWIS) ensures reliable processes and reduces operator errors during unmanned operation.

Operation

Optionally available: shifting unit for easy machine access, additional magazine for increased capacity, and Airdock for air supply to clamping systems.

Options

ITS / PM / PC 210 / UPC / VPC / PalletSet W

Compatibility

ITS / PM / PC 210 / UPC / VPC / PalletSet W
