Products Clamping Systems UPC (Universal PowerChuck) UPC pallet for vise
ER-108155

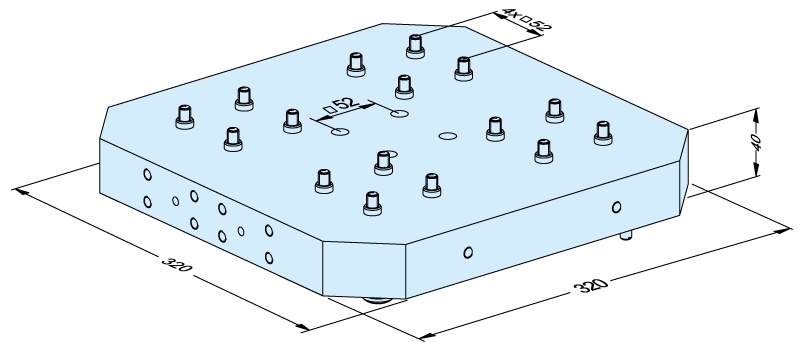

UPC pallet for vise

pitch 52

Technical data

Technical data for UPC pallet for vise
Pitch 52 mm
Workpiece size up to 500 x 500 x 500 mm
Workpiece identification EWIS™ Rapid

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Applications

Manual
Manual
Auto
Auto
Gripper RCS
Gripper RCS

Downloads

User Manual

Further information

Description
Aluminum pallet, centering segments and chucking spigots fitted, Z-support hard. Includes bolts and centering pins.
Mounting Interface
Prepared to accommodate several vises with pitch 52mm.
Installation
Remove chucking spigot from vise and fit centering pins. Attach vise to pallet with 4 bolts.
