Products Clamping Systems UPC (Universal PowerChuck) UPC pallet Alu R50 320 x 320 x 40
ER-018570

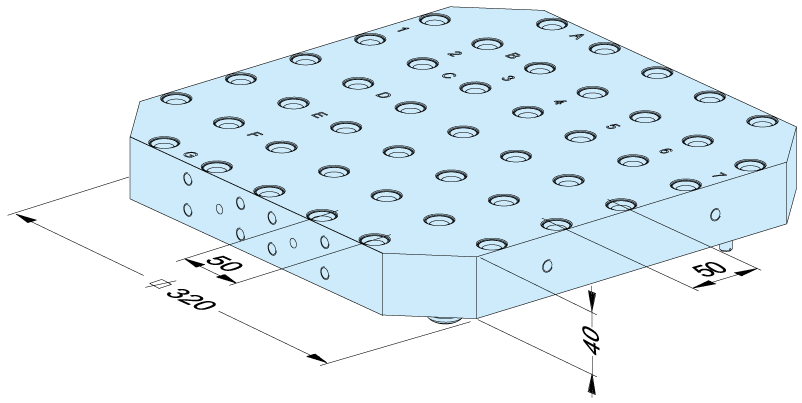

UPC pallet Alu R50 320 x 320 x 40

mounting surface ground / anodized

Technical data

Technical data for UPC pallet Alu R50 320 x 320 x 40
Workpiece size up to 500 x 500 x 500 mm
Workpiece identification EWIS™ Rapid

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Applications

Manual
Manual
Auto
Auto
Gripper RCS
Gripper RCS

Downloads

User Manual

Further information

Description
Aluminum with 50mm grid, grid hole ø 12F7, M12 thread. Centering segments and chucking spigots fitted. Hard Z-support.
Mounting Interface
Base for gauges and workpieces.
Note
The anodized version is not suitable for EDM applications.
