ER-025820

UPC Duo centering segments

chucking spigot, for mounting from above

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Downloads

Further information

Description

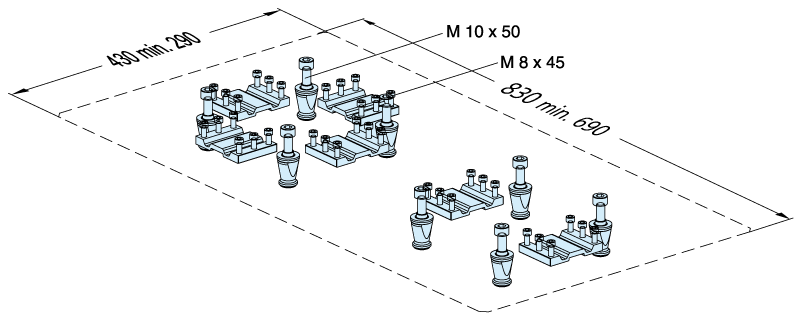

Six segments and eight chucking spigots for UPC, including bolts.
Mounting Interface
To build special UPC pallets.
Installation
With bolts from the top through the pallet.
Note
Assembling on two aligned UPC chucks.
