Products Clamping Systems UPC (Universal PowerChuck) UPC 2.0 chuck 280 x 280
ER-139505

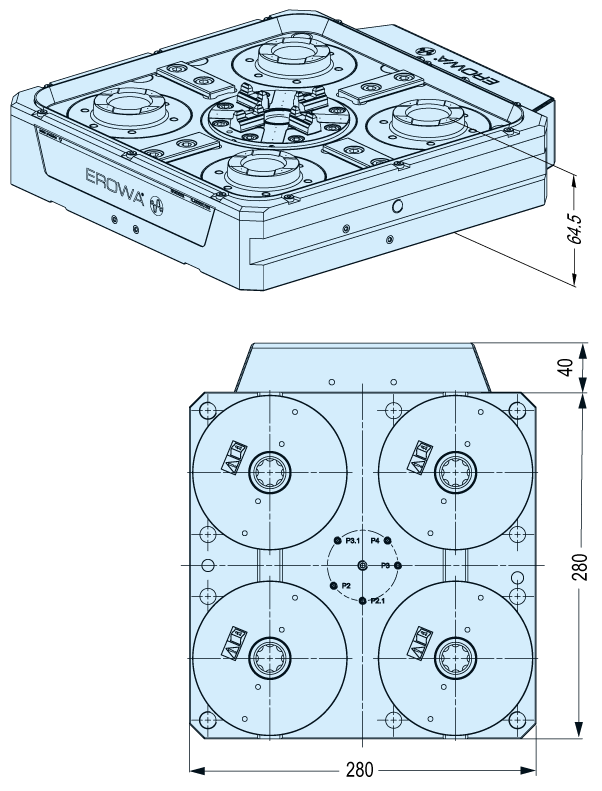

UPC 2.0 chuck 280 x 280

with ITS chuck 100 P

Technical data

Technical data for UPC 2.0 chuck 280 x 280
Operation With manual or automatic control unit
Indexing 4 x 90°
Reclamping pressure 3 bar pneumatic
Reclamping Optional
Opening pressure 6 bar pneumatic
Repeatability < 0.002 mm
Chuck dimensions 280 x 280 mm
Clamping power 50'000 N
Clamping power reclamped 80'000 N
Clamping mechanism Spring force, clamped without pressure
System height (chuck and pallet) 105 mm
Workpiece size up to 500 x 500 x 500 mm

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Applications

Manual Control Unit
Manual Control Unit
Electropneumatic Control Unit
Electropneumatic Control Unit
Submerged
Submerged
Auto
Auto

Downloads

Operating and installation instructions

Further information

Description
UPC 2.0 chuck with integrated ITS chuck 100 P, size 280 x 280 mm. With fixed fitting pattern on the underside.
Connections
6 connections (pneumatic), laterally and on the underside on pitch ø57mm: for opening, cleaning /presence check, reclamping, cleaning the UPC centerings, as well as opening, cleaning / presence check of the ITS chuck 100 P.
Mounting Interface
On milling, grinding, drilling, EDM and measuring machines. To accommodate UPC pallets, pallets ø115, ø148, electrode holders, etc.
Installation
Fitting borehole pattnern for 25mm/M12 grid, for star tables and machine tables with a T-slot distance of 50 mm.
