Products Clamping Systems PM Tooling Positioning pin PM85 Precise
ER-062135

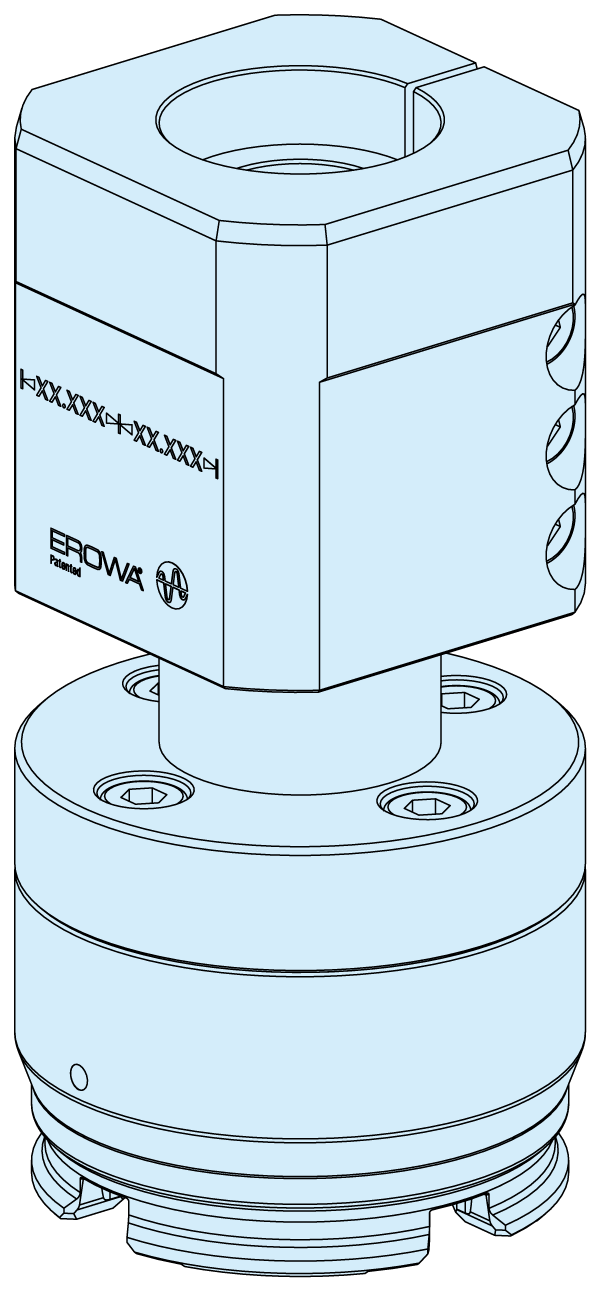

Positioning pin PM85 Precise

L145 - 184 mm with accessories

Applications

INOX
INOX

Downloads

User Manual

Further information

Description
Hardened steel, corrosion-resistant. Incl. alignment flange, threaded washer, threaded insert, and pin spanner.
Note
The pin is made to custom length (range 145-184 mm). Specification required!
Mounting Interface
On powder presses. For precise alignment of PM85 lower and upper punch chucks in relation to die-plate chuck PM128. Used in combination with positioning die-plate PM128 Precise / Multi.
